Bumper - Liftgate - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.
  3. Remove the bolts (x2) that attach the LH liftgate bumper to the liftgate, and then remove the bumper from the vehicle.

    12 N.m (8.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket

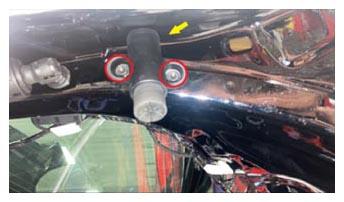

    G15391039Courtesy of TESLA, INC.

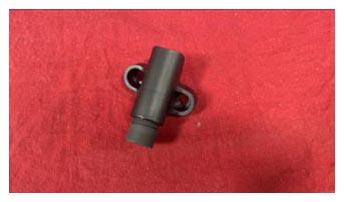

    G15391040Courtesy of TESLA, INC.
