Substrate - Cushion - 3rd Row - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH and RH front seats forward.
  5. Move the LH and RH monopost seats forward.
  6. On the touchscreen, touch Controls  > Frunk Open  .
  7. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  8. Open the liftgate.
  9. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  10. Remove the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  11. Remove the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  12. On the touchscreen, touch Controls  > Safety & Security  > Power Off  .
  13. Disconnect LV power. See LV Power (Disconnect and Connect) .
  14. Remove the LH and RH 3rd row tray harnesses. See TRAY HARNESS - 3RD ROW - LH (REMOVE AND REPLACE) .
  15. Remove the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .

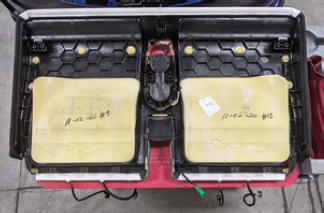

  16. Flip the 3rd row cushion over to access the bottom side of the cushion.
    NOTE: Place cushion on protected surface.

    Tip: Use of the following tool(s) is recommended:

    • Fender cover - 115212-00-A
    G15405402Courtesy of TESLA, INC.

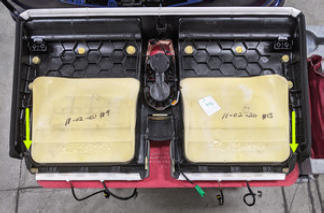

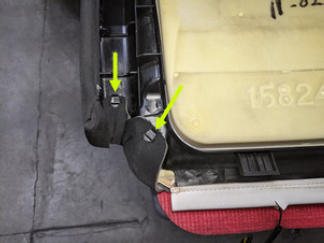

  17. Release the tabs (x4) that attach the 3rd row cushion cover to the rear corners of cushion substrate.
    G15405403Courtesy of TESLA, INC.
    G15405404Courtesy of TESLA, INC.
    G15405405Courtesy of TESLA, INC.

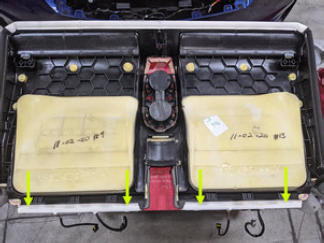

  18. Release the J-hooks (x2) that attach the 3rd row cushion cover to the rear end of the cushion substrate.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405406Courtesy of TESLA, INC.

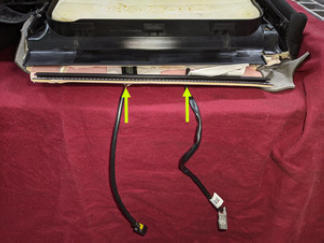

  19. Feed the 3rd row cushion connectors (x4) through the rear end of the cushion cover.
    G15405407Courtesy of TESLA, INC.
    G15405408Courtesy of TESLA, INC.
    G15405409Courtesy of TESLA, INC.

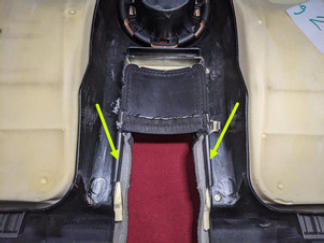

  20. Release the J-hooks (x2) that attach the 3rd row cushion cover to the cup holder.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405410Courtesy of TESLA, INC.

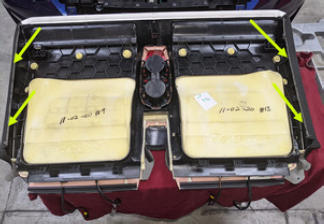

  21. Release the J-hooks (x2) that attach the 3rd row cushion cover to both sides of the 3rd row cushion substrate.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405411Courtesy of TESLA, INC.

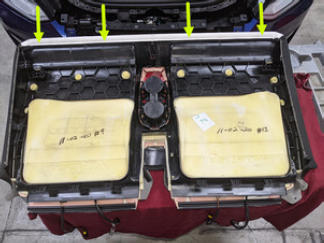

  22. Release the J-hooks (x2) that attach the 3rd row cushion cover to the front end of the 3rd row cushion substrate.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15405412Courtesy of TESLA, INC.

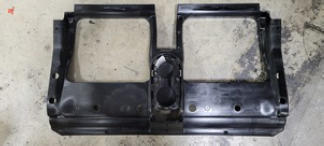

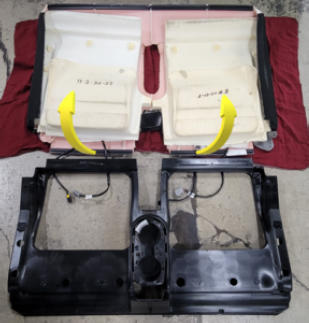

  23. Remove the 3rd row cushion substrate from the cushion cover.
    G15405413Courtesy of TESLA, INC.
    G15405414Courtesy of TESLA, INC.
