Riser - Outer - Driver Seat - Remove And Replace: Remove

  1. Open all the doors and lower the front windows.
  2. Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .

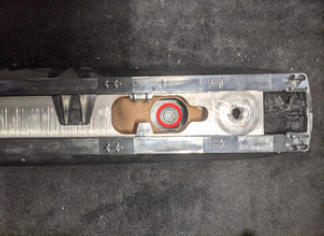

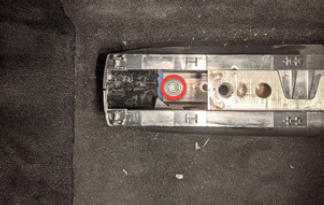

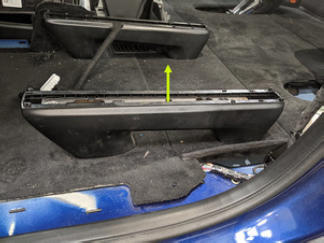

  3. Remove and discard the bolts (x2) that attach the driver seat outer riser assembly to the vehicle, and then remove the assembly from the vehicle.

    33 N.m (24.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15401663Courtesy of TESLA, INC.
    G15401664Courtesy of TESLA, INC.
    G15401665Courtesy of TESLA, INC.

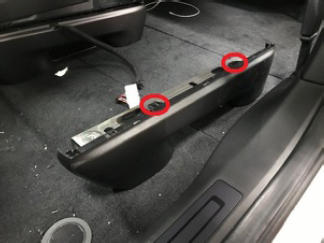

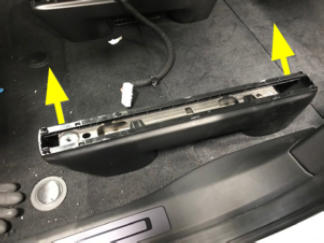

  4. Release the clips (x9) that attach the driver seat outer riser inboard cover to the riser, and then remove the cover from the riser. Repeat this step for the outboard cover.
    NOTE: Remove the inboard cover first, and then the outboard cover.
    G15401666Courtesy of TESLA, INC.
    G15401667Courtesy of TESLA, INC.
    G15401668Courtesy of TESLA, INC.
    G15401669Courtesy of TESLA, INC.
