Podium - 1st Row - Remove And Replace: Install

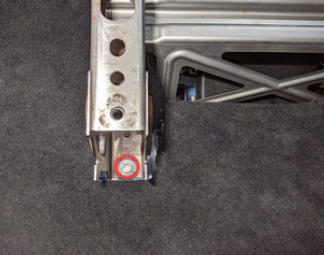

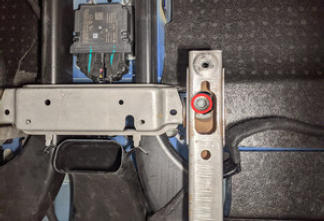

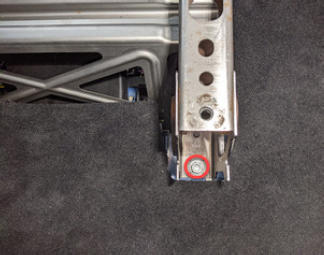

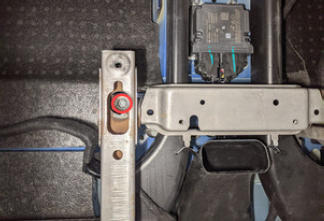

  1. Position the 1st row podium into the vehicle, and then install new bolts (x4) that attach the podium to the vehicle.

    33 N.m (24.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15401569Courtesy of TESLA, INC.
    G15401570Courtesy of TESLA, INC.
    G15401571Courtesy of TESLA, INC.
    G15401572Courtesy of TESLA, INC.
  2. Secure the tabs (x2) that attach the duct to the 1st row podium.

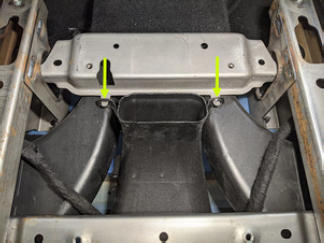

    G15401573Courtesy of TESLA, INC.

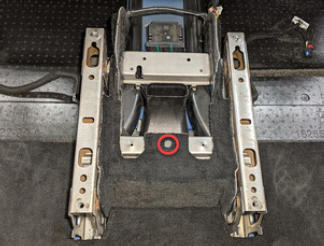

  3. Position the 1st row podium seat riser carpet into the vehicle, and then install the clip that attaches the carpet to the vehicle.
    G15401574Courtesy of TESLA, INC.

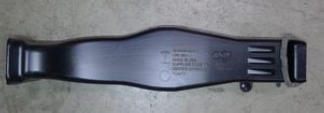

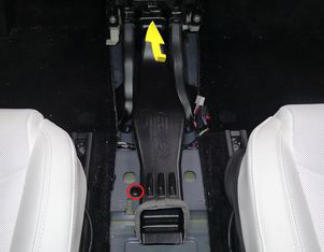

  4. Position the center console HVAC duct into the vehicle, and then install the clip that attaches the duct to the vehicle.
    NOTE: Slide the duct into the HVAC assembly and make sure the duct is fully seated.
    G15401575Courtesy of TESLA, INC.
    G15401576Courtesy of TESLA, INC.
    G15401577Courtesy of TESLA, INC.

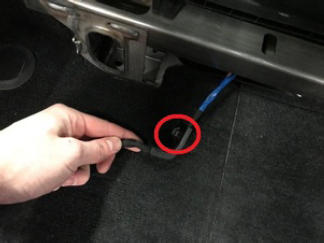

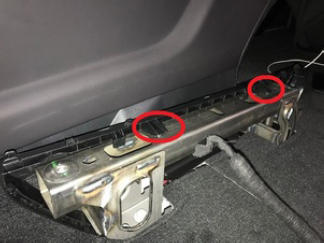

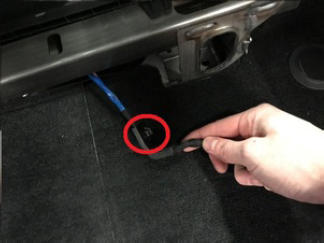

  5. Secure the clips (x2) that attach the driver seat harness to the driver seat inner riser.

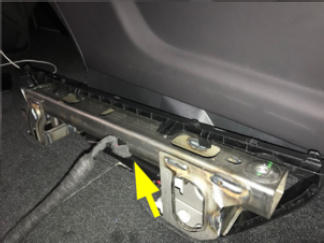

    G15401578Courtesy of TESLA, INC.
    G15401579Courtesy of TESLA, INC.
    G15401580Courtesy of TESLA, INC.
    G15401581Courtesy of TESLA, INC.

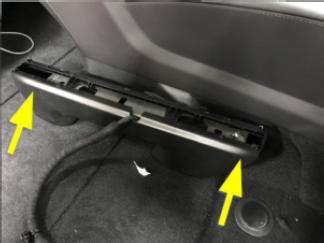

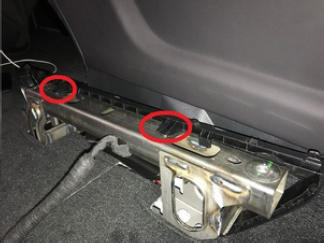

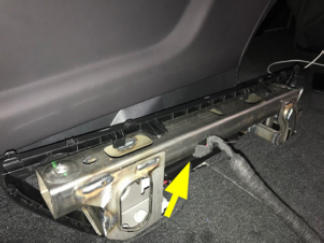

  6. Position the front passenger seat inner riser inboard cover onto the riser, and then secure the clips that attach the cover to the riser. Repeat this step for the front passenger inner riser outboard cover.
    NOTE: Install the inboard cover first, and then the outboard cover.
    NOTE: Be sure to route the seat harness through the outboard cover.
    G15401582Courtesy of TESLA, INC.
    G15401583Courtesy of TESLA, INC.
    G15401584Courtesy of TESLA, INC.

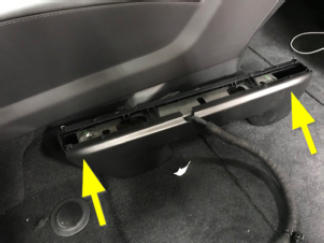

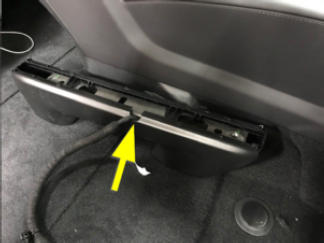

  7. Position the driver seat inner riser inboard cover onto the riser, and then secure the clips that attach the cover to the riser. Repeat this step for the driver seat inner riser outboard cover.
    NOTE: Install the inboard cover first, and then the outboard cover.
    NOTE: Be sure to route the seat harness through the outboard cover.

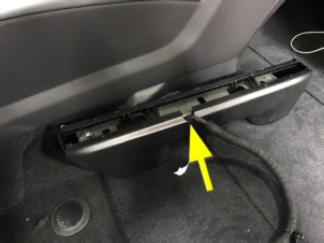

    G15401585Courtesy of TESLA, INC.
    G15401586Courtesy of TESLA, INC.
    G15401587Courtesy of TESLA, INC.

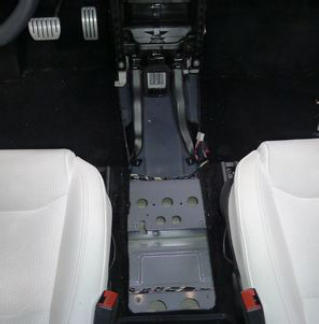

  8. Install the 1st row center console assembly. See Center Console Assembly - 1st Row (Remove and Install)
    NOTE: The front seats will be installed at a later step.

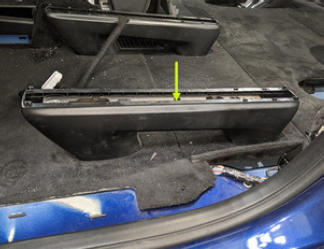

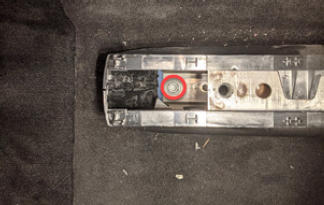

  9. Position the driver seat outer riser assembly into the vehicle, and then install new bolts (x2) that attach the assembly to the vehicle.

    33 N.m (24.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15401588Courtesy of TESLA, INC.

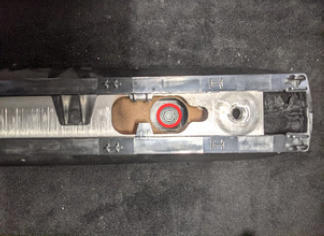

    G15401589Courtesy of TESLA, INC.
    G15401590Courtesy of TESLA, INC.
  10. With assistance, position the driver seat into the vehicle.
    CAUTION: Take care not to damage the surrounding components while lifting the seat into the vehicle.
  11. With assistance, position the driver seat to gain access to the underside of the seat.
  12. Secure the clip that attaches the LH side body harness to the seat assembly, connect the LH side body harness electrical connectors (x2) to the seat controller, and then secure the connector lock.

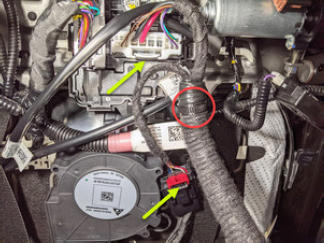

    G15401591Courtesy of TESLA, INC.
  13. With assistance, move the driver seat to the upright position.
  14. Position the front passenger seat outer riser assembly into the vehicle, and then install new bolts (x2) that attach the assembly to the vehicle.

    33 N.m (24.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket

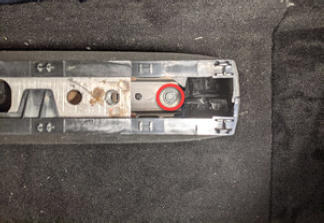

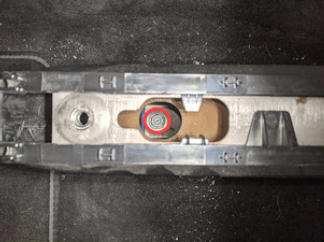

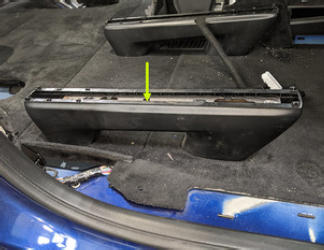

    G15401592Courtesy of TESLA, INC.
    G15401593Courtesy of TESLA, INC.
    G15401594Courtesy of TESLA, INC.
  15. With assistance, position the front passenger seat into the vehicle.
    CAUTION: Take care not to damage surrounding components while lifting the seat into the vehicle.
  16. With assistance, position the front passenger seat to gain access to the underside of the seat.
  17. Secure the clip that attaches the RH side body harness to the seat assembly, connect the RH side body harness electrical connectors (x2) to the seat controller, and then secure the connector lock.

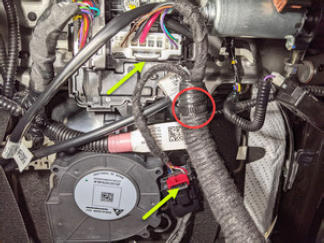

    G15401595Courtesy of TESLA, INC.
  18. With assistance, position the front passenger seat to the upright position.
  19. Connect LV power. See LV Power (Disconnect and Connect) .
  20. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  21. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
  22. Move front passenger seat forward.
  23. Position the RH front seat belt to the seat, and then engage the lock mechanism that attaches the RH front seat belt to the seat.
    NOTE: Rotate the lock clockwise to reattach the seat belt.

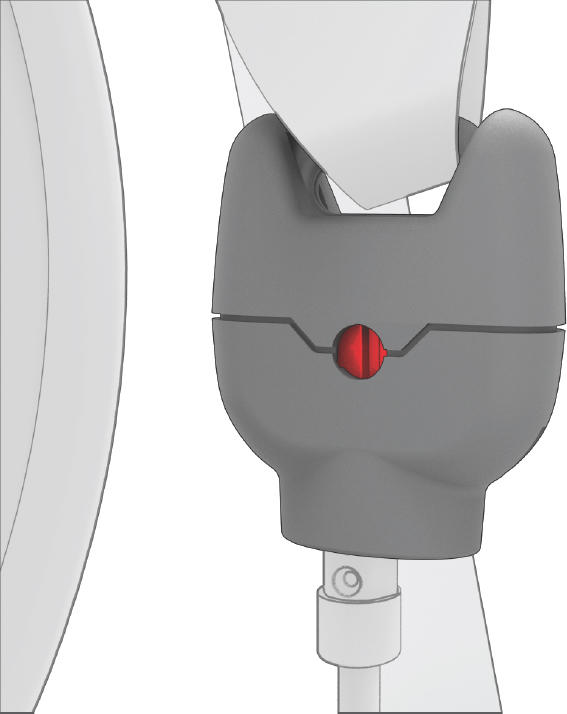

    G15401596Courtesy of TESLA, INC.

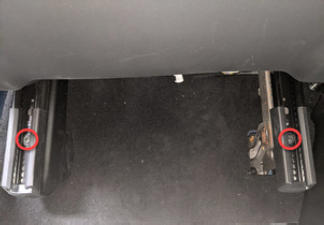

  24. Install new bolts (x2) that attach the rear of the front passenger seat - seat tracks to the vehicle.

    34 N.m (25.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx Plus T45 socket
    G15401597Courtesy of TESLA, INC.
  25. Move the front passenger seat rearward.

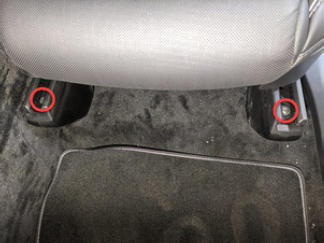

  26. Install new bolts (x2) that attach the front of the front passenger seat - seat tracks to the vehicle.

    34 N.m (25.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx Plus T45 socket
    G15401598Courtesy of TESLA, INC.
  27. Move the front passenger seat to the original position.
  28. Close the RH front door.
  29. Repeat step  27 for the LH side of the vehicle.
