Light - Under Seat - Driver - Remove And Replace: Install

  1. Install the driver under seat light onto the seat assembly, and then engage the locking tab.
    NOTE: Slide the light towards the front of the LH seat rail. Position the opposite end, and then slide the light towards the rear of the driver seat rail to engage the locking tab.

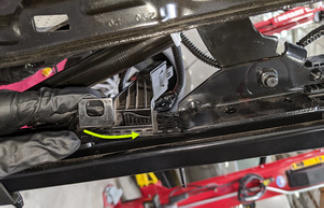

    G15401439Courtesy of TESLA, INC.

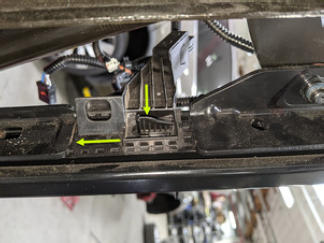

    G15401440Courtesy of TESLA, INC.
  2. Connect the driver under seat light electrical connector.

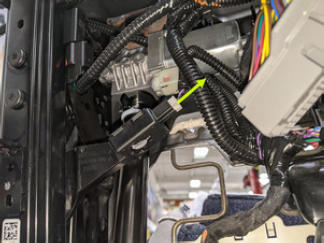

    G15401441Courtesy of TESLA, INC.
  3. Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  4. Close the LH rear door.
