Cover - Inner - Podium - Driver - Remove And Replace: Install

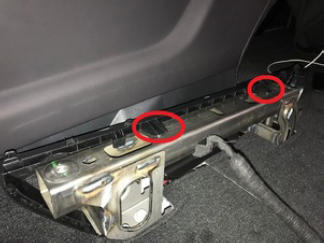

  1. Position the driver podium inner cover into the seat assembly, and then secure the clips (x2) that attach the cover to the seat assembly.
    NOTE: Route the seat harness through inner outboard cover.
    G15401375Courtesy of TESLA, INC.
  2. Install the driver podium outer cover. See COVER - OUTER - PODIUM - DRIVER (REMOVE AND REPLACE) .
  3. Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  4. Raise the front windows and close the LH front door.
