Trim - Headrest - Driver - Remove And Replace: Install

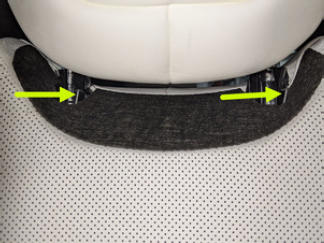

  1. Install the driver headrest trim into the seat assembly.
    NOTE: Verify the locking clips are positioned properly prior to installing the headrest.
    G15403489Courtesy of TESLA, INC.
  2. Move the driver seat to its original position.
  3. Raise the LH front window and close the LH front door.
