Seat Assembly - 1st Row - LH - Remove And Replace: Remove

Open the LH doors and lower the front windows.
Move the 1st row LH seat forward.

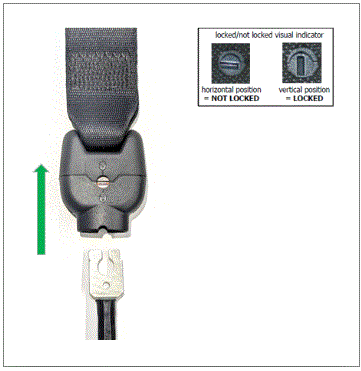

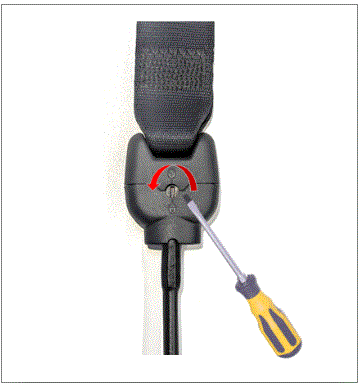

Use a flathead screwdriver to rotate the lock mechanism on the front seat belt linkage counterclockwise to release it from the pretensioner, and then slide the linkage off the pretensioner and set it aside.
CAUTION: DO NOT rotate clockwise to avoid damage to the mechanism.

NOTE: The linkage design may vary, but will function the same.

NOTE: The lock screw will remain in the horizontal position when released.

NOTE: A light audible click will be heard when the linkage is released.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove and discard the bolts (x2) that attach the rear of the 1st row LH seat tracks to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
Courtesy of TESLA, INC.
Move the 1st row LH seat rearward.
Remove and discard the bolts (x2) that attach the front of the 1st row LH seat tracks to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
Courtesy of TESLA, INC.
Move the 1st row LH seat to the middle of the track and the seat back to the most upright position.
Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
Disconnect LV power. See LV Power (Disconnect and Connect) .
Position the 1st row LH seat to gain access to the underside of the seat.

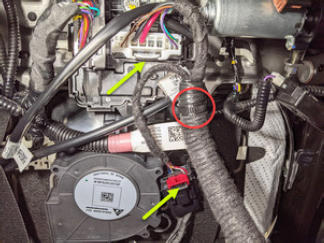

Release the red locking tab on the black connector, disconnect the LH side body harness electrical connectors (x2) from the seat controller, and then release the clip that attaches the harness to the seat assembly.

Courtesy of TESLA, INC.
With assistance, remove the 1st row LH seat from the vehicle.
CAUTION: Use caution to not damage other components.

Courtesy of TESLA, INC.
