Microphone - Seat - Driver - Remove And Replace: Remove

  1. Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  2. With assistance, place the driver seat on a protected surface so that the underside of the seat can be accessed.
  3. Remove the screw that attaches the driver seat outboard side shield to the seat assembly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15403239Courtesy of TESLA, INC.

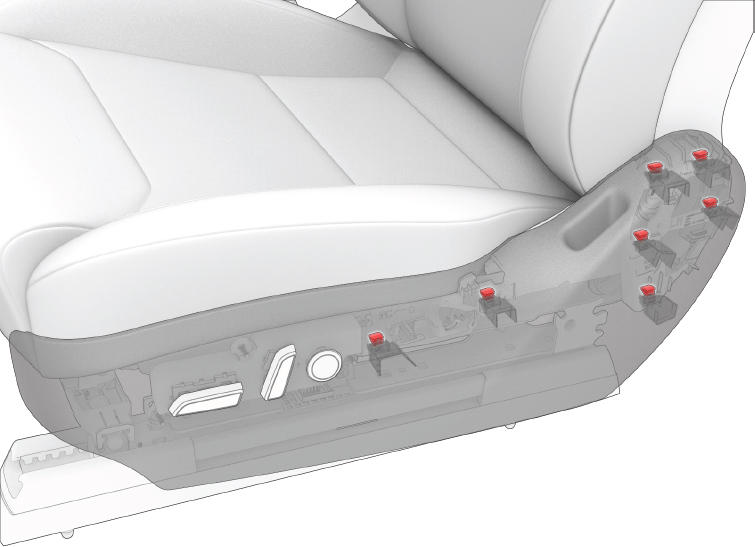

  4. Carefully release the clips (x7) that attach the driver seat outboard side shield to the seat assembly, but do not fully remove the side shield from the seat assembly.
    G15403241Courtesy of TESLA, INC.

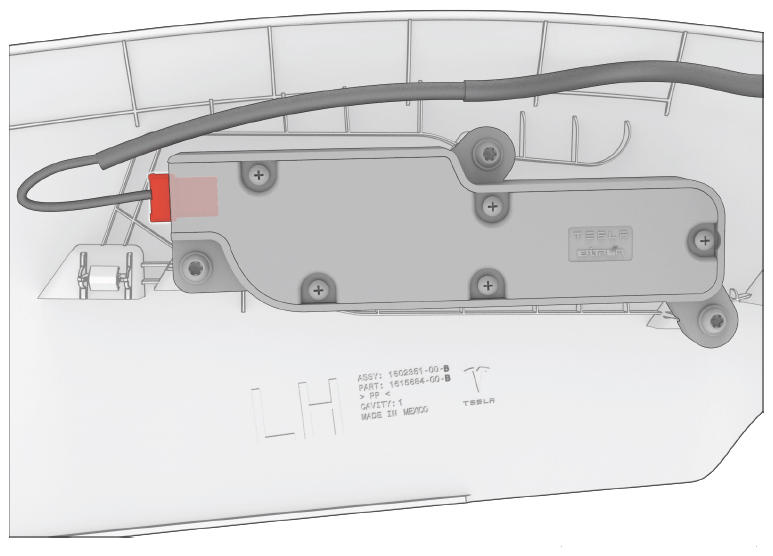

  5. Disconnect the electrical harness from the seat switch.
    G13957045Courtesy of TESLA, INC.
  6. Remove the front seat side shield LH carrier from the driver seat. See CARRIER - LH - SIDE SHIELD - OUTBOARD - FRONT SEAT (REMOVE AND REPLACE) .
  7. Remove the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
  8. Remove the front seat side shield RH carrier from the driver seat. See CARRIER - RH - SIDE SHIELD - INBOARD - FRONT SEAT (REMOVE AND REPLACE) .
  9. Release the seat back elastic straps (x2) from the seat frame.
    G15403242Courtesy of TESLA, INC.

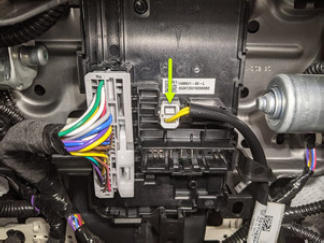

  10. Disconnect the FSB vent heat pad electrical connector from the driver seat controller.
    G15403243Courtesy of TESLA, INC.

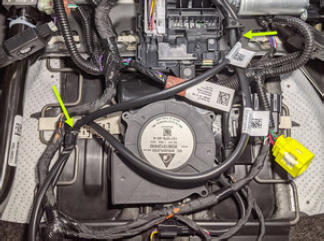

  11. Release the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly, and then remove the harnesses from the assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15403244Courtesy of TESLA, INC.
  12. Remove the driver seat headrest. See TRIM - HEADREST - DRIVER (REMOVE AND REPLACE) .
  13. Remove the driver seat back shell. See SHELL - SEAT BACK - DRIVER (REMOVE AND REPLACE) .

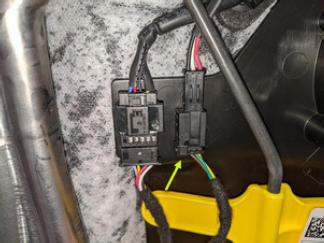

  14. Disconnect the fan controller electrical connector from the seat harness.
    G15403245Courtesy of TESLA, INC.

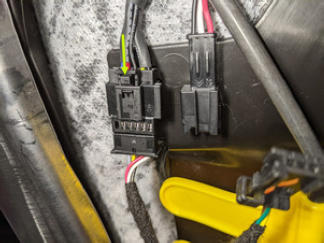

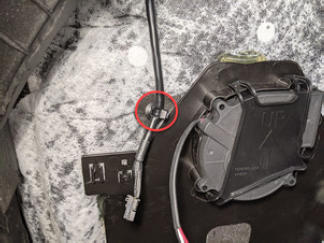

  15. Disconnect the driver seat microphone electrical connector, and then release clip that attaches the harness to the driver seat back rest foam.
    G15403246Courtesy of TESLA, INC.
    G15403247Courtesy of TESLA, INC.

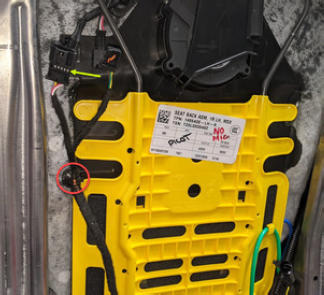

  16. Release the female side of the microphone connector and harness clips (x2) from the seat back suspension.
    G15403248Courtesy of TESLA, INC.
  17. Release the trim strap, and then release the trim retainers (x6) that attach the seat back trim retainers to the seat back frame.
    G15403249Courtesy of TESLA, INC.

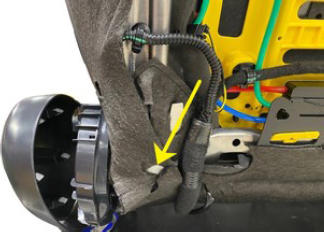

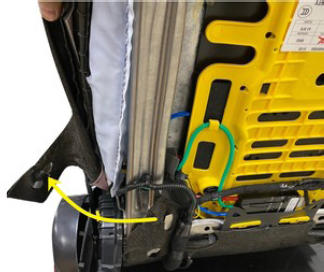

  18. Carefully release the driver seat cover from the driver seat, and then set the cover aside for access.
    G15403250Courtesy of TESLA, INC.
    G15403251Courtesy of TESLA, INC.

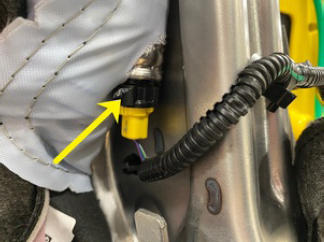

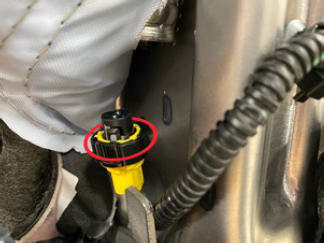

  19. Push down on the tab to release the driver seat side air bag electrical connector, and then disconnect the connector.
    G15403252Courtesy of TESLA, INC.
    G15403253Courtesy of TESLA, INC.

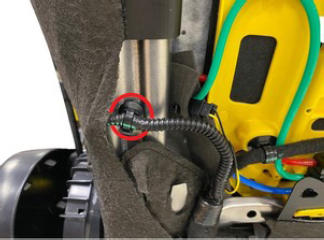

  20. Release the clip that attaches the driver seat side airbag harness to the driver seat - seat frame.
    G15403254Courtesy of TESLA, INC.

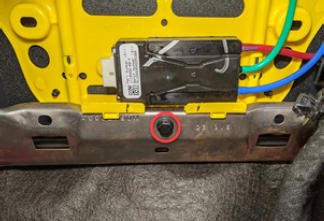

  21. Remove the bolt that attaches the driver seat backrest lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15403255Courtesy of TESLA, INC.

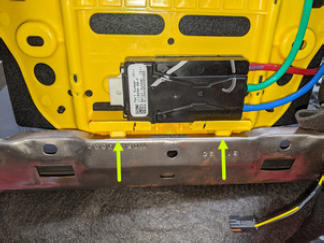

  22. Release the tabs (x2) that attach the lower portion of the driver seat backrest lumbar support to the seat back frame.
    G15403256Courtesy of TESLA, INC.

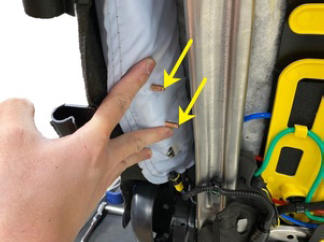

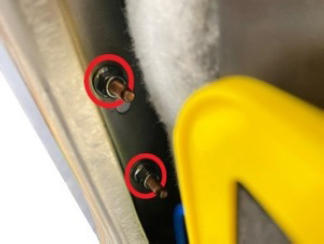

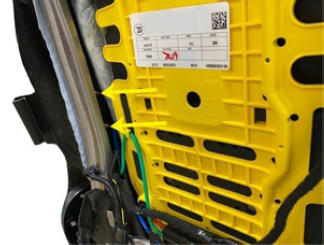

  23. Carefully pull the seat cover and foam assembly away from the frame, and then remove and discard the nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15403257Courtesy of TESLA, INC.
    G15403258Courtesy of TESLA, INC.
    G15403259Courtesy of TESLA, INC.

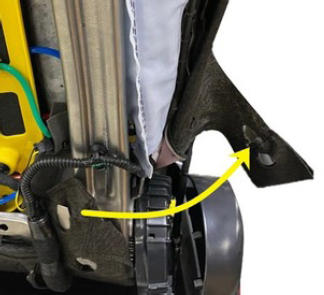

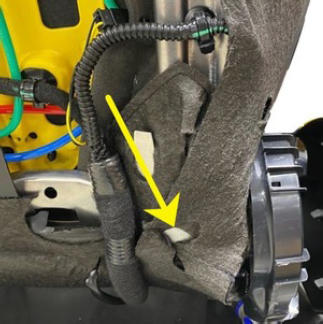

  24. Release the RH side of the driver seat back trim assembly, and then move the trim aside for access.
    G15403260Courtesy of TESLA, INC.
    G15403261Courtesy of TESLA, INC.

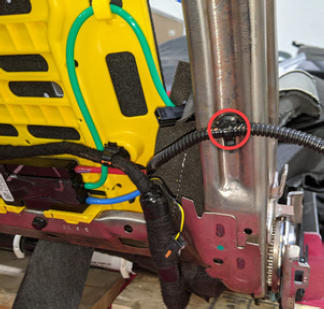

  25. Release the clip that attaches the driver seat harness to the RH side of seat back frame.
    G15403262Courtesy of TESLA, INC.
  26. With assistance, remove the driver seat back trim assembly from the seat frame.
    G15403263Courtesy of TESLA, INC.
    G15403264Courtesy of TESLA, INC.

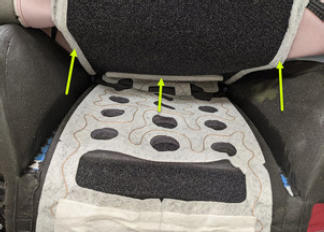

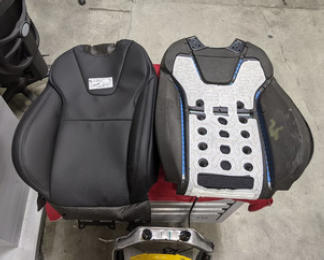

  27. Release the Velcro strips (x4) that attach the driver seat back rest trim to the seat back rest foam, and then remove the trim from the assembly.
    G15403265Courtesy of TESLA, INC.
    G15403266Courtesy of TESLA, INC.
    G15403267Courtesy of TESLA, INC.

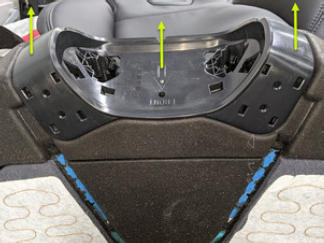

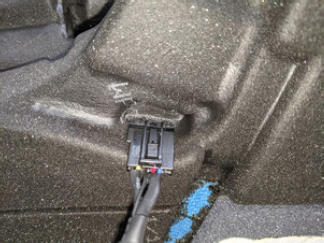

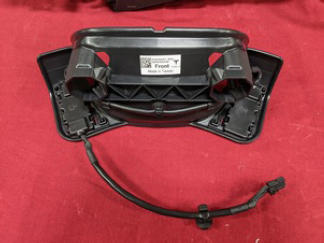

  28. Remove the driver seat microphone assembly from the driver seat back rest foam.
    NOTE: Feed the harness through the access hole on the driver seat back rest foam.
    G15403268Courtesy of TESLA, INC.
    G15403269Courtesy of TESLA, INC.
    G15403270Courtesy of TESLA, INC.
