Lumbar Support - Backrest - Driver Seat - Remove And Replace: Install

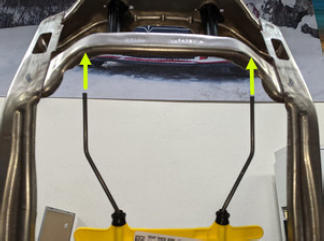

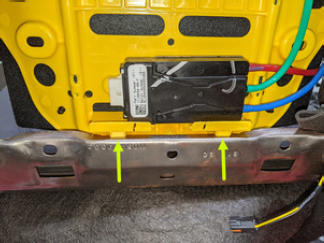

  1. Position the driver seat backrest lumbar support onto the seat frame, install the suspension arms (x2) into position, and then secure the lower tabs (x2) onto the back rest frame.
    NOTE: If installing a new assembly, transfer over the insulator suspension clips.
    G15403203Courtesy of TESLA, INC.
    G15403204Courtesy of TESLA, INC.

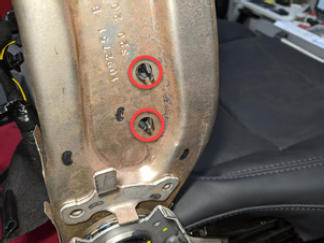

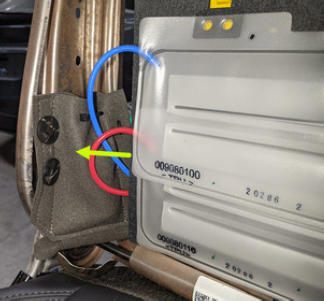

  2. Secure the driver seat lumbar pump foam housing pouch clips (x2) onto the seat back frame.
    G15403205Courtesy of TESLA, INC.
    G15403206Courtesy of TESLA, INC.

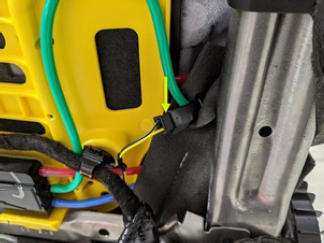

  3. Connect the driver seat lumbar pump electrical connector.
    G15403207Courtesy of TESLA, INC.

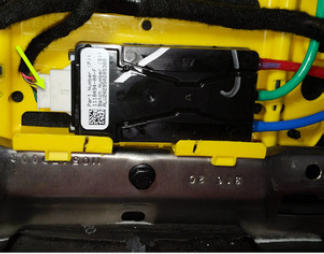

  4. Connect the driver seat lumbar valve pack assembly electrical connector.
    G15403208Courtesy of TESLA, INC.

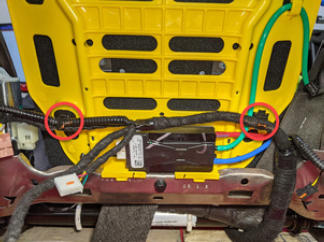

  5. Install the clips (x2) that attach the driver seat harness from the driver seat backrest lumbar support.
    G15403209Courtesy of TESLA, INC.

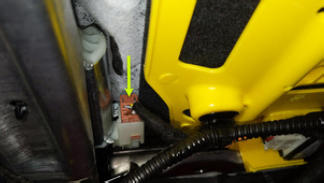

  6. Disconnect the driver seat backrest pitch motor electrical connector.
    G15403210Courtesy of TESLA, INC.
  7. With assistance, maneuver the driver seat back trim assembly downward onto the seat frame to install it onto the seat assembly.
    G15403211Courtesy of TESLA, INC.

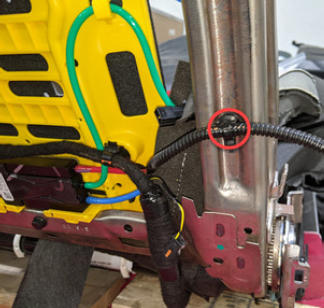

  8. Install the clip that attaches the driver seat harness to the RH side of seat back frame.
    G15403212Courtesy of TESLA, INC.

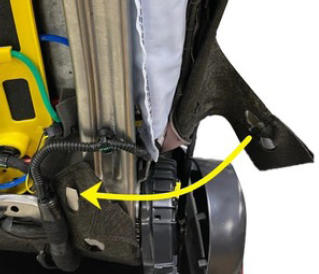

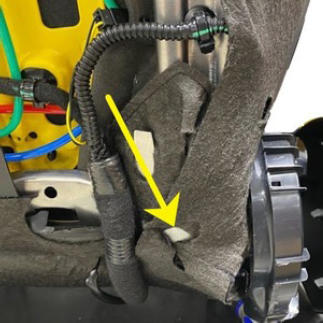

  9. Carefully secure the RH side of the driver seat back trim onto the driver seat frame.
    G15403213Courtesy of TESLA, INC.
    G15403214Courtesy of TESLA, INC.

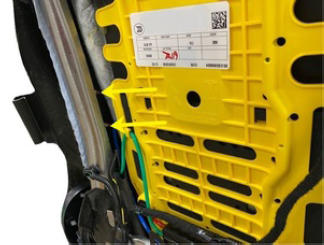

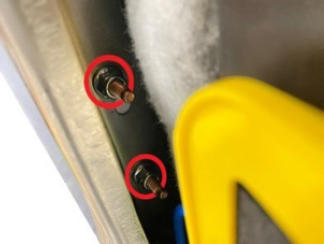

  10. Install new nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15403215Courtesy of TESLA, INC.
    G15403216Courtesy of TESLA, INC.

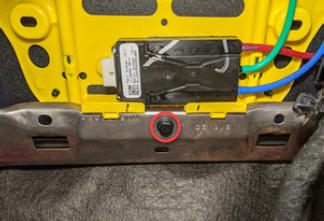

  11. Install the bolt that attaches the driver seat backrest lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15403217Courtesy of TESLA, INC.

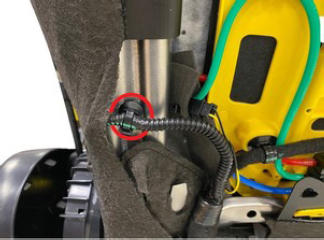

  12. Install the clip that attaches the driver seat side airbag harness to the driver seat - seat frame.
    G15403218Courtesy of TESLA, INC.

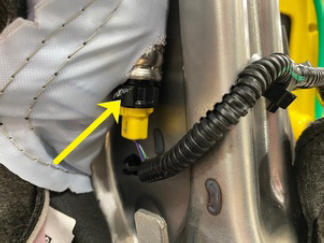

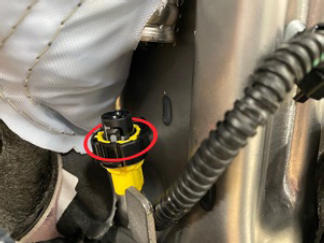

  13. Connect the driver seat side air bag electrical connector, and then secure the safety lock.
    G15403219Courtesy of TESLA, INC.
    G15403220Courtesy of TESLA, INC.

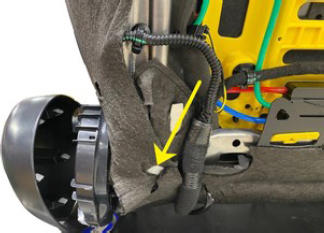

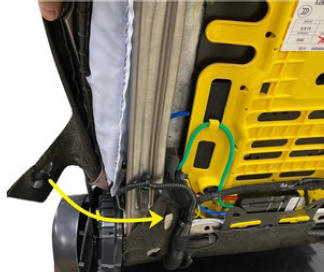

  14. Carefully secure the LH side of the driver seat - seat cover and foam onto the seat frame.
    G15403221Courtesy of TESLA, INC.
    G15403222Courtesy of TESLA, INC.
  15. Secure the retainers (x6), and then secure the trim strap onto the driver seat - seat back frame.
    G15403223Courtesy of TESLA, INC.

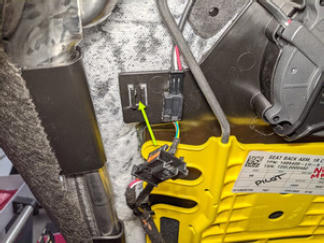

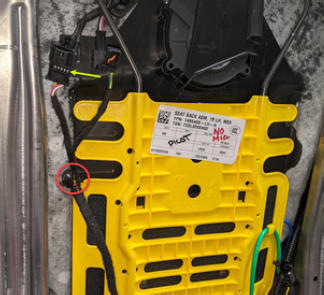

  16. Secure the female side of microphone connector and harness clips (x2) onto seat back suspension.
    G15403224Courtesy of TESLA, INC.
    G15403225Courtesy of TESLA, INC.

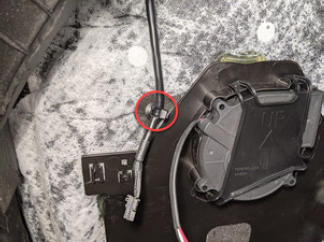

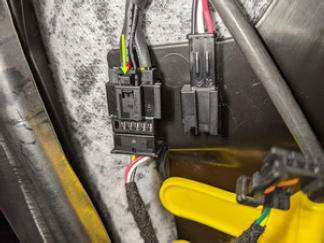

  17. Connect the driver seat microphone, and then secure harness clip onto the seat back foam.
    G15403226Courtesy of TESLA, INC.
    G15403227Courtesy of TESLA, INC.

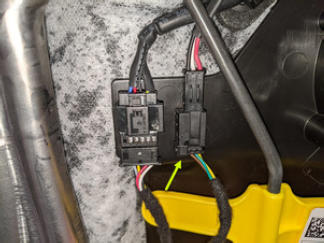

  18. Slide the fan controller electrical connector downward to install it onto the bracket, and then connect the electrical connector.
    G15403228Courtesy of TESLA, INC.

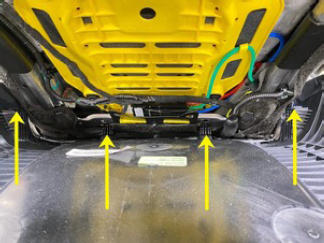

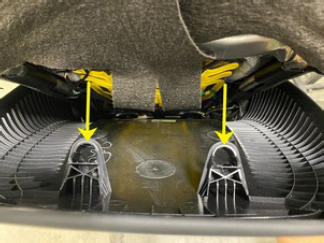

  19. With assistance, align and fully secure the clips that attach the driver seat back shell to the seat assembly.
    G15403229Courtesy of TESLA, INC.
    G15403230Courtesy of TESLA, INC.
    G15403231Courtesy of TESLA, INC.
  20. Install the driver headrest trim. See TRIM - HEADREST - DRIVER (REMOVE AND REPLACE) .
  21. Position the driver seat assembly onto the seat back.
    NOTE: Protect the seat from damage.

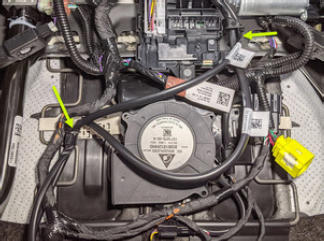

  22. Secure the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15403232Courtesy of TESLA, INC.

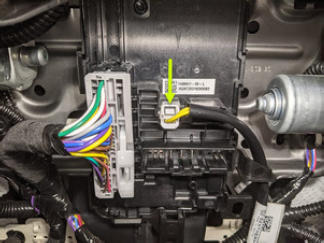

  23. Connect the FSB vent heat pad electrical connector from the seat controller.
    G15403233Courtesy of TESLA, INC.
  24. Secure the seat back elastic straps (x2) to the seat frame.
    G15403234Courtesy of TESLA, INC.
  25. Install the front seat side shield RH carrier from the driver seat. See CARRIER - RH - SIDE SHIELD - INBOARD - FRONT SEAT (REMOVE AND REPLACE) .
  26. Install the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
  27. Install the front seat side shield LH carrier from the driver seat. See CARRIER - LH - SIDE SHIELD - OUTBOARD - FRONT SEAT (REMOVE AND REPLACE) .
  28. Connect the electrical harness to the back rest and cushion adjust switch assembly, and then verify the functions of the seat switches.
    G15403235Courtesy of TESLA, INC.

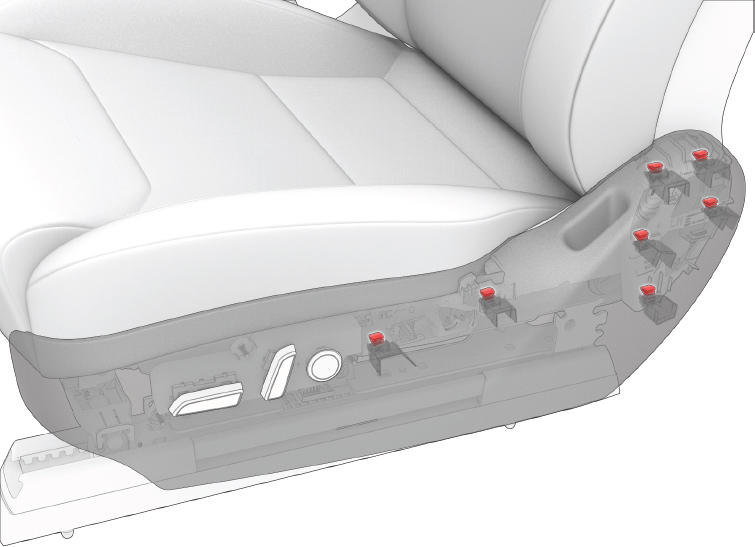

  29. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15403236Courtesy of TESLA, INC.
  30. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15403237Courtesy of TESLA, INC.
  31. Install the driver seat into the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
