Switch - Recliner - 3rd Row Seat - LH - Remove And Replace: Install

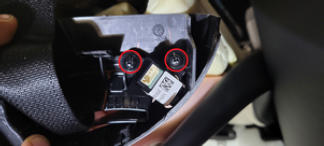

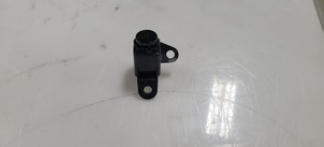

- Position the LH 3rd row seat recliner switch on the seat, and then install the screws that attach the switch to the seat.
4 N.m (2.9 ft-lbs)
NOTE: Use of the following tool(s) is recommended:- PH1 Phillips screwdriver

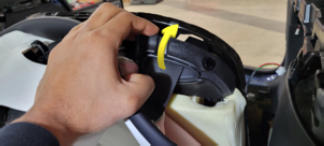

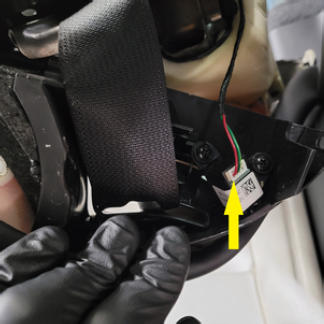

- Connect the LH 3rd row seat recliner switch connector, and then install the seat escutcheon into the seat back cushion trim.

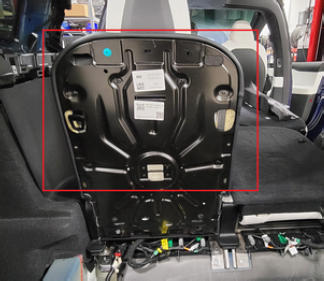

- From the 3rd row, fold the top outer portion of the LH 3rd row seat cover and foam back over the seat frame.

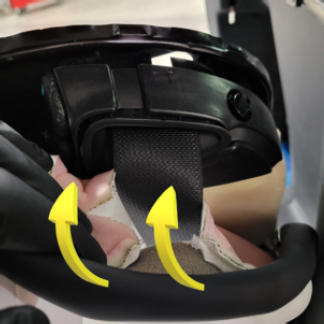

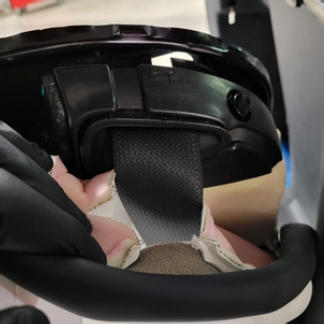

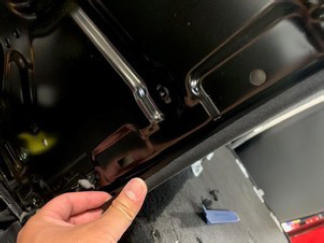

- Engage the J hook clip that attaches the upper half of LH 3rd row seat upholstery to the seat.NOTE: Fold the seat to a workable position, start at one end of the J hook clip, and then fold the clip inwards until the other end of the upholstery is fully tucked.

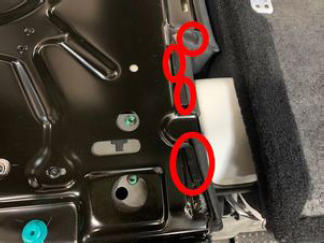

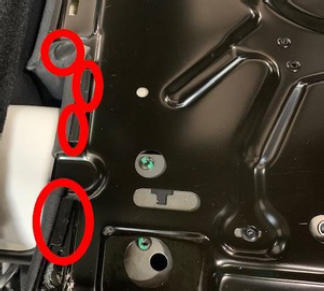

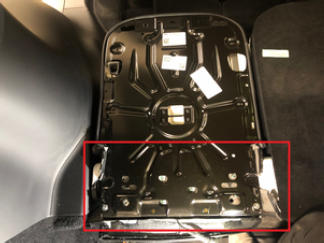

- Engage the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.
- Install the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .
- Install the rear trunk carpet. See Carpet - Rear Trunk (5 Seat) (Remove and Replace) .
- Install the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
- Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .

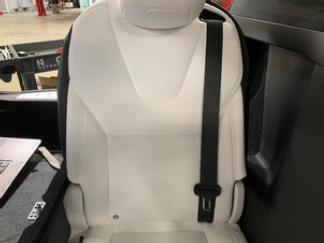

- Unfold the LH and RH 3rd row seats into original position.
- Close the liftgate.
- Unfold the 2nd row 40 and 60 seats into original position.
- Close the LH and RH falcon wing doors.
