Reinforcement - Inner - LH - Remove And Replace: Install

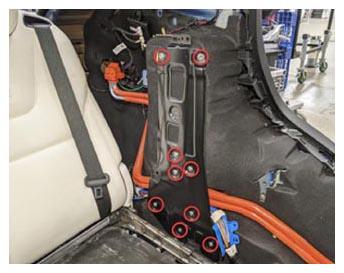

  1. Install the LH inner reinforcement to the body, and then install the bolts (x10) that attach the reinforcement to the body.

    27 N.m (19.9 ft-lbs)

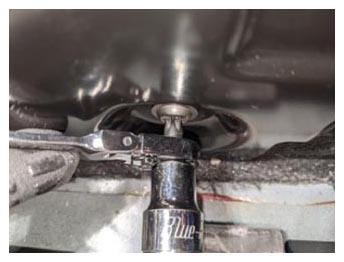

    NOTE: The bottom two bolts require improvising an 8 mm ratchet box-end wrench to turn the T40 socket.
    G15396004Courtesy of TESLA, INC.
    G15396005Courtesy of TESLA, INC.
  2. Install the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace) .
  3. Install the trunk LH side trim bracket. See:
