Bright Strip - Center Console - Rear - Remove And Replace: Remove
- Remove the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace) .

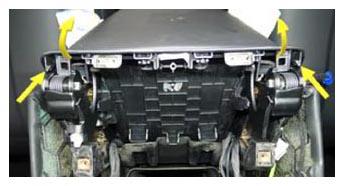

- Remove the screws (x6) that attach the rear center console bright strip to the center console, and then remove the bright strip from the center console.NOTE: Release the datums and rotate the brightwork up and out of the center console.
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
- Torx T10 bit
