Wheel Arch Liner - Front - LH - Remove And Replace: Install

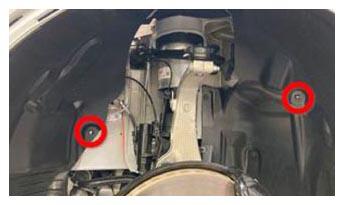

- Install the LH front wheel arch liner into the LH front wheel arch, and then install the push nuts (x2) that attach the wheel arch liner to the body.
 Courtesy of TESLA, INC.
|
- Fasten the clips (x2) that attach upper portion of the LH front wheel arch liner to the body.
 Courtesy of TESLA, INC.
|

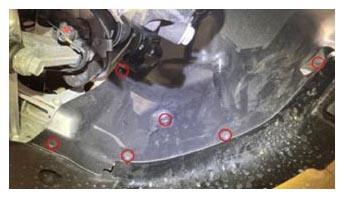

- Fasten the clips (x6) that attach the rear portion of the LH front wheel arch liner to the body.
 Courtesy of TESLA, INC.
|

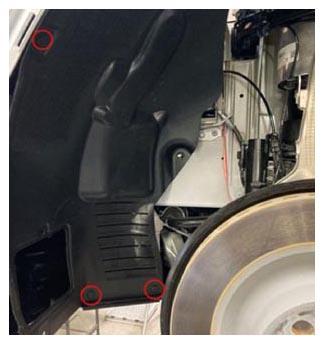

- Fasten the clips (x3) that attach the front portion of the LH front wheel arch liner to the body.
 Courtesy of TESLA, INC.
|
- Connect the electrical harness to the LH front fender garnish parking sensor connector, and then starting from the front and working rearward, fasten the clips (x5) and tabs (x9) that attach the fender garnish to the body.
 Courtesy of TESLA, INC.
|
- Install the LH front wheel fairing to the valance, and then fasten the tab and install the bolts (x2) that attach the wheel fairing to the valance.
1.5 N.m (1.1 ft-lbs)
 Courtesy of TESLA, INC.
|
- Fasten the clip that attaches the LH front wheel fairing to the LH front wheel arch liner.
 Courtesy of TESLA, INC.
|

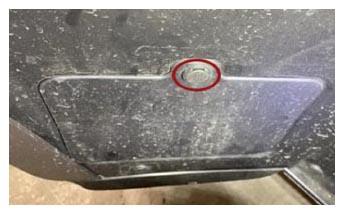

- Install the LH front wheel arch liner cover to the LH front wheel arch liner, and then fasten the clip and the tabs (x8) that attach the cover to the liner.
 Courtesy of TESLA, INC.
|
- Install the LH front wheel. See Wheel (Remove and Install)
.
- Remove the vehicle from the 2-post lift. See Raise Vehicle - 2 Post Lift
.
