Panel - Cowl Screen - Remove And Replace: Remove
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Remove the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
- Remove the LH wiper arm. See Wiper Arm - LH (Remove and Replace)
.
- Remove the RH wiper arm. See Wiper Arm - RH (Remove and Replace)
.

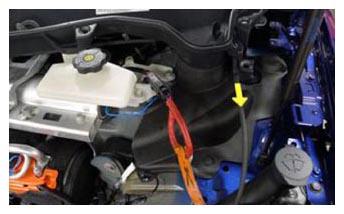

- Release the cowl screen washer supply hose located above the LH shock tower cover.
 Courtesy of TESLA, INC.
|

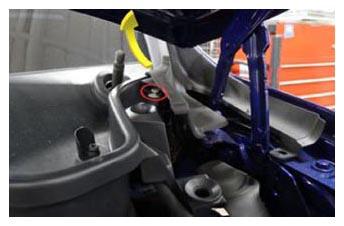

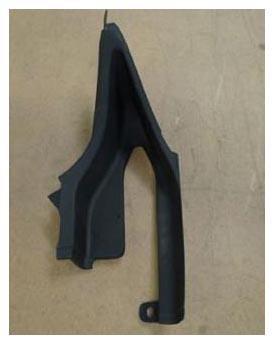

- Release the clip that attaches the LH outer hood hinge cover to the vehicle, and then remove the cover from the vehicle. Repeat this step for the RH outer hood hinge cover.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

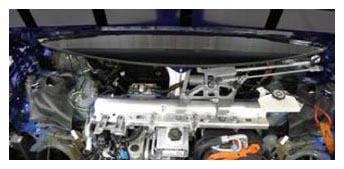

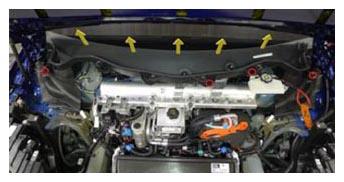

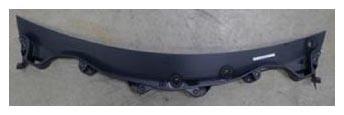

- Remove the clips (x4) that attach the cowl screen panel assembly to the vehicle, and then pull the panel upward and out of the lower windshield channel to remove it from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

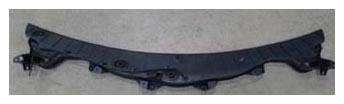

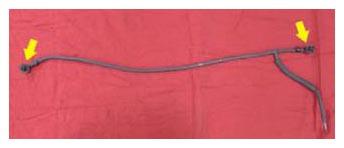

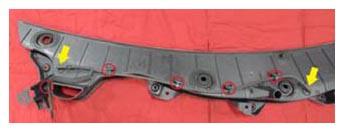

- Release the clips (x5) and nozzles (x2) that attach the cowl screen panel wiper hose to the cowl screen panel, and then remove the hose from the panel.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
