Pad - Lifting - Each - Remove And Replace: Install

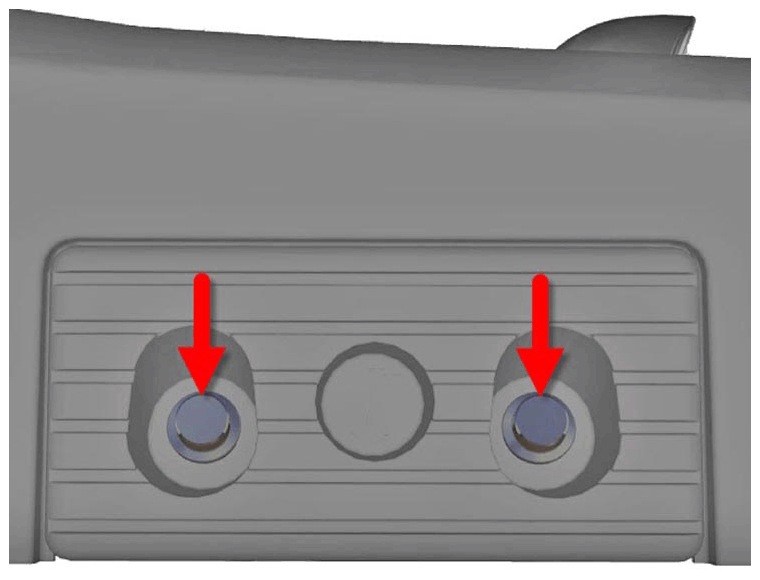

  1. Install the bolts (x2) that attach the lifting pad to the body.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm deep socket
    G15394032Courtesy of TESLA, INC.
  2. On the touchscreen, restore the suspension back to its original setting.
