Bracket - Applique - (Liftgate) - Remove And Replace: Remove

  1. Remove the liftgate applique. See APPLIQUE - LIFTGATE (REMOVE AND REPLACE) .
  2. Remove the screws (x4) that attach the liftgate applique bracket to the liftgate, and then release the bracket from the liftgate.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15393635Courtesy of TESLA, INC.

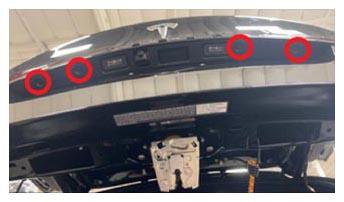

    G15393636Courtesy of TESLA, INC.
  3. Remove the bolts (x2) that attach the rear facing camera to the liftgate applique bracket, release the camera harness from the bracket, and then remove the bracket from the vehicle.

    1.3 N.m (1.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15393637Courtesy of TESLA, INC.

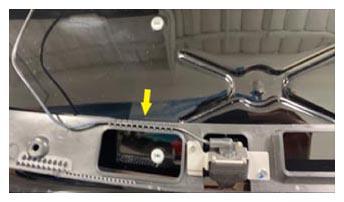

    G15393638Courtesy of TESLA, INC.
