Reservoir - Windshield Washer - Remove And Replace: Install

  1. Position the windshield washer reservoir into the vehicle, and then install the nuts (x3) that attach the reservoir to the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15438369Courtesy of TESLA, INC.
  2. Position the windshield washer reservoir pump into the vehicle, and then install the pump into the windshield washer reservoir.
    NOTE: Fully seat the pump into the grommet and face the hose coupling forward.
    G15438370Courtesy of TESLA, INC.
  3. Connect the reservoir washer hose from windshield washer reservoir pump.
    G15438371Courtesy of TESLA, INC.
  4. Position the windshield washer reservoir level sensor into the vehicle, and then install the sensor into the windshield washer reservoir.
    NOTE: Align the square edge with the mark on the reservoir housing.
    G15438372Courtesy of TESLA, INC.
    G15438373Courtesy of TESLA, INC.
  5. Connect the windshield washer reservoir neck to the windshield washer reservoir.
    NOTE: Inspect the O-ring and replace if damaged.
    NOTE: Lubricate the O-ring with washer fluid to prevent damage.
    G15438374Courtesy of TESLA, INC.

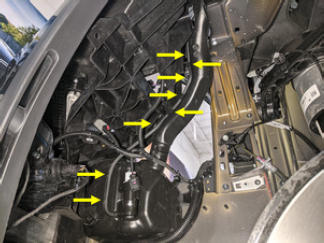

  6. Position the reservoir washer hose onto windshield washer reservoir, and then secure the hose into the hooks (x6) and tabs (x2) that attach the hose to the reservoir.
    G15438375Courtesy of TESLA, INC.
  7. Secure the clips (x3) that attach the frunk harness to the windshield washer reservoir.
    G15438376Courtesy of TESLA, INC.
  8. Connect the windshield washer reservoir pump electrical connector.
    G15438377Courtesy of TESLA, INC.
  9. Connect the windshield washer reservoir level sensor electrical connector.
    G15438378Courtesy of TESLA, INC.
  10. Install the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .
  11. Install the LH front wheel. See Wheel (Remove and Install) .
  12. Install the clip that attaches the windshield washer reservoir neck to the body.
    G15438379Courtesy of TESLA, INC.
  13. Connect the reservoir washer hose to the straight hose coupling at the cowl screen.
    G15438380Courtesy of TESLA, INC.
  14. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install) .
  15. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  16. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  17. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  18. Fill the windshield washer reservoir until the fluid level is visible just below the filler neck.
    G15438381Courtesy of TESLA, INC.
  19. Close the hood.
  20. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift .
  21. Raise the LH front window and close the LH front door.
