Hose - Washer - Cowl Screen - Remove And Replace: Install

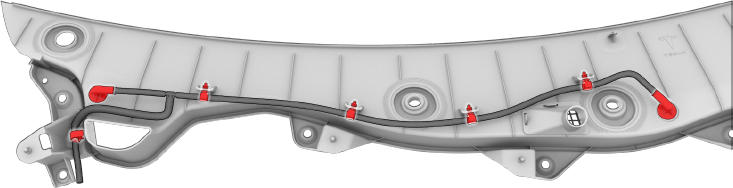

  1. Position the cowl screen wiper hose to the cowl screen, and then install the clips that attach the cowl screen wiper hose to the cowl screen.
    G15438345Courtesy of TESLA, INC.
  2. Install the cowl screen. See Panel - Cowl Screen (Remove and Replace) .
