12V Power Socket - Center Console - Remove And Replace: Remove

  1. Open the RH front door and lower the RH front window.
  2. Move the front passenger seat rearward.
  3. Fully retract the center console lid, cupholder, and sliding tray into the locked position.
    G15437879Courtesy of TESLA, INC.
    G15437880Courtesy of TESLA, INC.
    G15437881Courtesy of TESLA, INC.
  4. Release the clips (x4) that attach the center console service panel to the center console assembly, and then pull the panel upward to access the electrical harness.
    NOTE: Use a 90 degree plastic trim tool.
    G15437882Courtesy of TESLA, INC.
    G15437883Courtesy of TESLA, INC.
    G15437884Courtesy of TESLA, INC.
  5. Disconnect the electrical connectors (x3), and then release the clip that attaches the electrical connector to the center console service panel.
    G15437885Courtesy of TESLA, INC.
    G15437886Courtesy of TESLA, INC.
    G15437887Courtesy of TESLA, INC.
  6. Remove the screws (x3) that attach the front USB hub to the center console service panel assembly, and then remove the USB hub from the assembly.
    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket
    G15437888Courtesy of TESLA, INC.

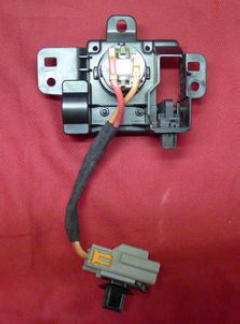

  7. Remove the screws (x2) that attach the 12V power socket to the center console service panel, and then remove the power socket from the assembly.

    1.5 N.m (1.1 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket
    G15437889Courtesy of TESLA, INC.
    G15437890Courtesy of TESLA, INC.
