Bracket - Center Console - Remove And Replace: Remove

  1. Open all four doors.
  2. Lower the LH and RH front windows.
  3. Move the LH front seat forward.
  4. Release the LH front seat belt.
    NOTE: Turn the release mechanism counter clockwise, and then turn back clockwise after releasing.

    Tip: Use of the following tool(s) is recommended:

    • Flat head screwdriver
  5. Remove the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  6. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  7. Move the RH front seat forward.
  8. Release the RH front seat belt.
    NOTE: Turn the release mechanism counter clockwise, and then turn back clockwise after releasing.
  9. Remove the RH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  10. Remove the RH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  11. Remove the LH 1st row seat assembly. See Seat Assembly - 1st Row - LH (Remove and Install) .
  12. Remove the RH 1st row seat assembly. See Seat Assembly - 1st Row - RH (Remove And Install) .
  13. Remove the 1st row center console assembly. See CENTER CONSOLE ASSEMBLY - 1ST ROW (REMOVE AND INSTALL) .
  14. Remove the driver and passenger seat outer risers. See Riser - Outer - Driver Seat (Remove and Replace) .

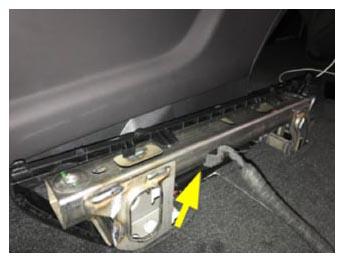

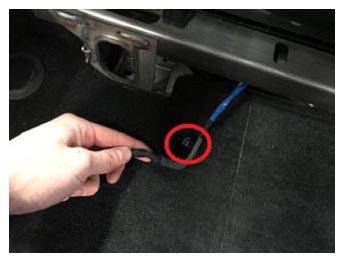

  15. Release the clips (x2) that attach the LH front seat harness to the inner seat riser.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    G15397190Courtesy of TESLA, INC.
    G15397191Courtesy of TESLA, INC.

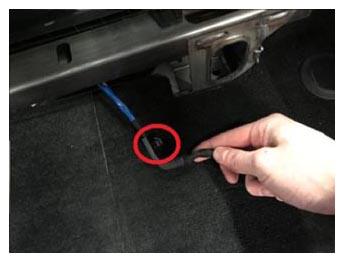

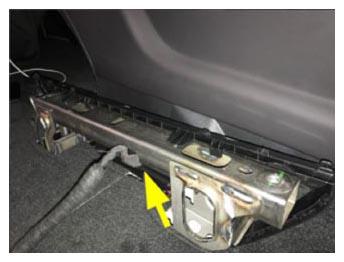

  16. Release the clips (x2) that attach the RH front seat harness to the inner seat riser.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    G15397192Courtesy of TESLA, INC.
    G15397193Courtesy of TESLA, INC.

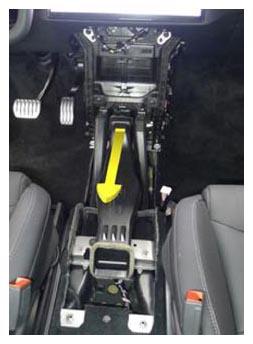

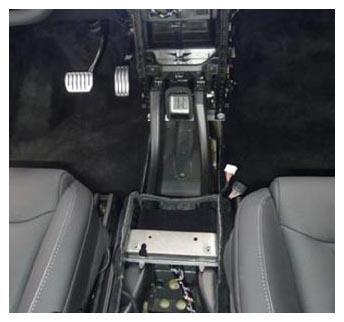

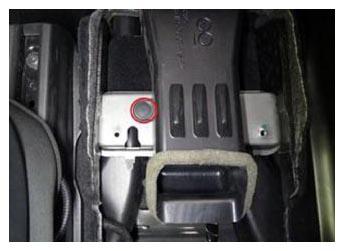

  17. Release the brush clip that attaches the center console HVAC duct to the vehicle, and then remove the duct from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    G15397194Courtesy of TESLA, INC.
    G15397195Courtesy of TESLA, INC.
    G15397196Courtesy of TESLA, INC.
  18. Remove the 1st row podium. See Podium - 1st Row (Remove and Replace) .
  19. Remove the 2nd row front floor panel. See Floor Panel - Front - 2nd Row (6 Seat) (Remove And Replace) .
  20. Remove the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
  21. Remove the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) (REMOVE AND REPLACE) .

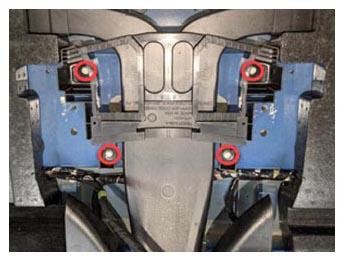

  22. Remove the bolts (x4) that attach the center console bracket to the vehicle, and then remove the bracket from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 4 in extension
    • 10 mm socket
    • Ratchet/torque wrench
    G15397210Courtesy of TESLA, INC.
    G15397211Courtesy of TESLA, INC.
