Lid - Cup Holder - 2nd Row - Remove And Replace: Remove
- Open the LH front door.
- Lower the LH front window.
- Open the LH falcon wing door.

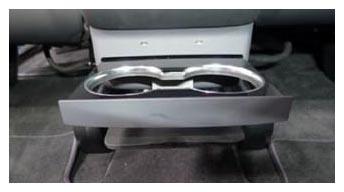

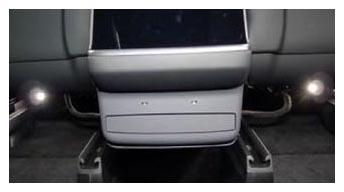

- Depress the spring loaded assembly to extend the 2nd row cup holder.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

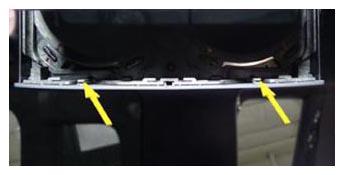

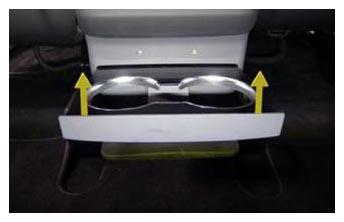

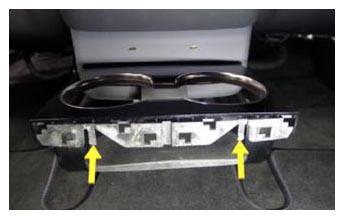

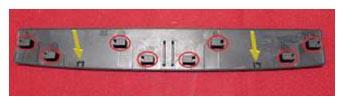

- Release the tabs (x2) that attach the 2nd row cup holder lid to the cupholder, push the lid upwards until the datums (x8) clear the retaining cutouts, and then remove the lid from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 6 in 90 degree tip soft grip miniature pick
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
