Cover - Footwell - Passenger - Remove And Replace: Install

  1. Position the passenger footwell cover into the vehicle, connect the electrical connector, and then secure the magnets (x3) that attach the cover to the vehicle.

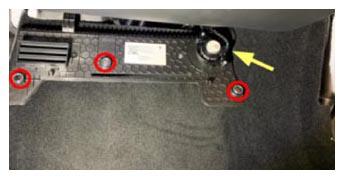

    G15394387Courtesy of TESLA, INC.

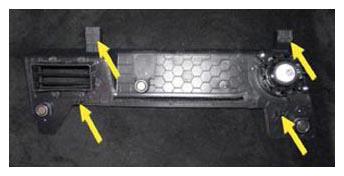

    G15394388Courtesy of TESLA, INC.
