Cover - Aero Lens - Instrument Panel - LH - Remove And Replace: Install

  1. Position the LH instrument panel aero lens cover onto the instrument panel, and then secure the clip that attaches the cover to the instrument panel.
    NOTE: Ensure the cover is flush with the aero lens.

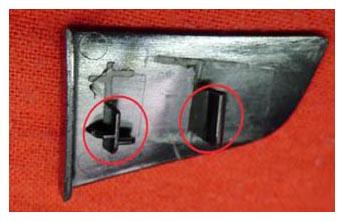

    G15394368Courtesy of TESLA, INC.

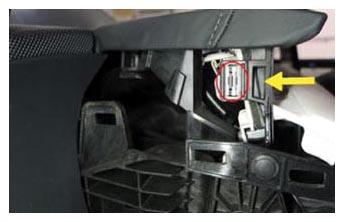

    G15394369Courtesy of TESLA, INC.

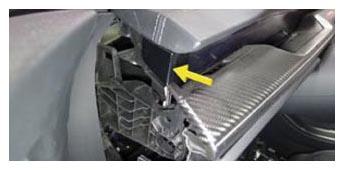

    G15394370Courtesy of TESLA, INC.
  2. Install the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE)
  3. Raise the LH front window and close the LH front door.
