Panel - Cowl Screen - Remove And Replace: Install

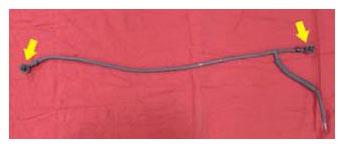

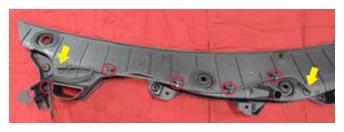

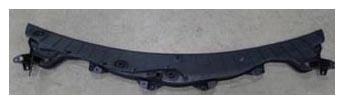

- Position the cowl screen panel wiper hose onto the cowl screen panel, and then secure the clips (x5) and nozzles (x2) that attach the hose to the panel.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

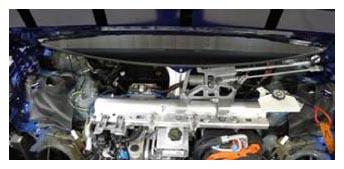

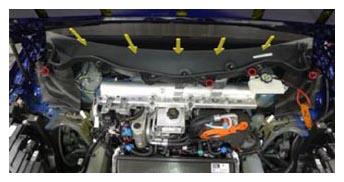

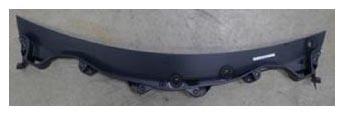

- Position the cowl screen panel assembly to the vehicle, and then install the push clips (x4) that attach the assembly to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

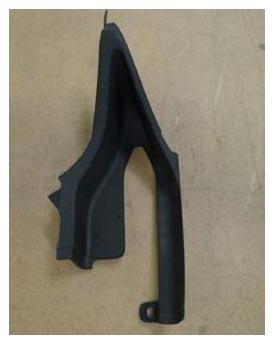

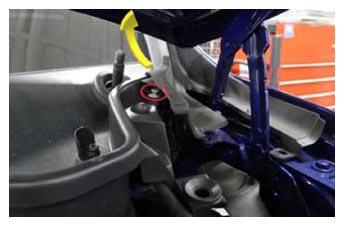

- Position the LH outer hood hinge cover into the vehicle, and then install the clip that attaches the cover to the vehicle. Repeat this step for the RH outer hood hinge cover.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

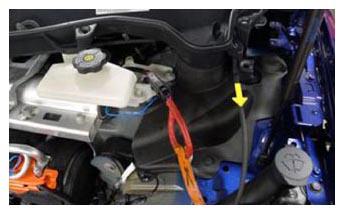

- Secure the cowl screen washer supply hose located above the LH shock tower cover.
 Courtesy of TESLA, INC.
|
- Install the RH wiper arm. See Wiper Arm - RH (Remove and Replace)
.
- Install the LH wiper arm. See Wiper Arm - LH (Remove and Replace)
.
- Install the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
