Bracket - License Plate - Front - Remove And Replace: Remove

  1. Vehicles in China only: Remove the screws (x2) that secure the license plate bracket from the fascia.

    1 Nm (.7 lbs-ft)

    CAUTION: Do not overtorque the screws.

    Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • Torque Wrench 1/4in Dr Hexagon - 1060071-00-A
    • PH2 Phillips Screwdriver bit
  2. Release the double-sided tape that attaches the front license plate bracket to the front fascia, and then remove the bracket from the fascia.
    NOTE: Heat the license plate bracket along the double sided tape application area to aid in release.

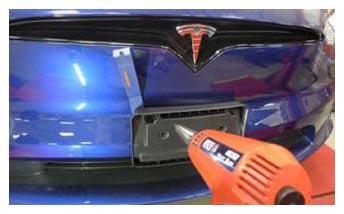

    G15393484Courtesy of TESLA, INC.

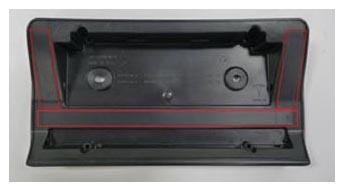

    G15393485Courtesy of TESLA, INC.
  3. Use IPA wipes to clean the center area of the front fascia.
    NOTE: Allow 1 minute for the IPA to fully dry.

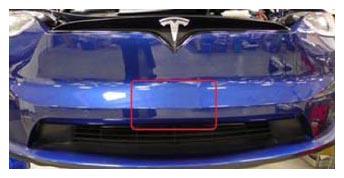

    G15393486Courtesy of TESLA, INC.
