- Remove excess urethane from the roof and the center spine applique carrier to prepare for installation.
NOTE:
Clean roof surface area with IPA wipes. Allow 1 minute for dry time before continuing.
 Courtesy of TESLA, INC.
|

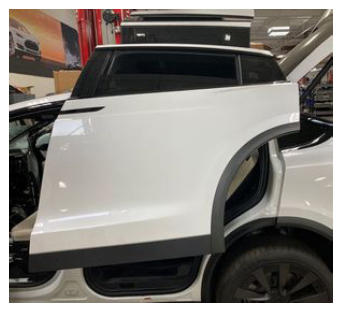

- Open the LH rear door.

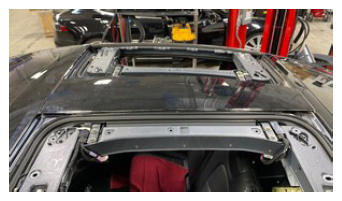

- Apply primer onto the roof and the center spine applique carrier following the urethane path.
 Courtesy of TESLA, INC.
|
- Apply primer onto the center spine applique following the urethane path.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Prepare the caulking gun and urethane.
NOTE:

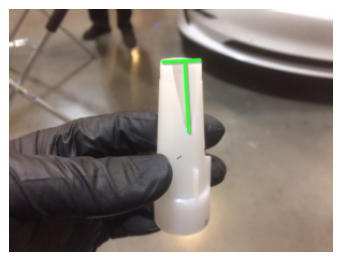

Opening must be 8 mm wide and 14 mm tall.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Apply urethane to the center spine applique following the primer patch.
NOTE:
Fill any gaps with urethane to ensure consistent bead.
 Courtesy of TESLA, INC.
|
- Enter the vehicle and close the LH rear door from the inside.
NOTE:
Access to the rooftop through the upper rear door opening.
- With an assistant, install the center spine applique.
NOTE:
x7 clips.
NOTE:
Align the center spine applique onto the vehicle.
NOTE:
Connect the ultrasonic sensor electrical connector.
NOTE:
Press down firmly and ensure all the clips are fully engaged.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Open the LH rear door partially.
 Courtesy of TESLA, INC.
|
- Install the LH upper rear door glass assembly. See Door Glass Assembly - Rear - Upper - LH (Remove and Replace)
.
- Install the mid rear LH door trim gap hider. See Gap Hider - Door Trim - LH - Rear - Mid (Remove and Replace)
.
- Install the LH center rear door trim bracket. See Bracket - Rear Door Trim - Center - LH (Remove and Replace)
.
- Install the LH front upper rear door trim bracket. See Bracket - Rear Door Trim - Upper - Front - LH (Remove and Replace)
.
- Install the LH rear upper rear door trim bracket. See Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)
.
- Install the LH upper rear door trim panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace)
.
- Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace)
.
- Install the headliner. See Headliner (Remove and Install)
.
- Verify that the Bluetooth, Wi-Fi, and LTE are functioning properly.
