Valance - Front Fascia - Remove And Replace: Install

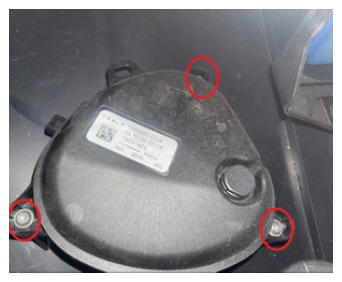

  1. Install the screws (x3) that attach the pedestrian warning speaker to the valance.

    1.8 N.m (1.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • Torx T25 socket
    • Ratchet/torque wrench
    G00659101Courtesy of TESLA, INC.
    G15389321Courtesy of TESLA, INC.
  2. With an assistant, connect the tabs (x10) that attach the valence to the front fascia assembly.
    NOTE: Position the tabs into place prior to applying pressure. Verify the valance is fully seated onto the front fascia assembly.

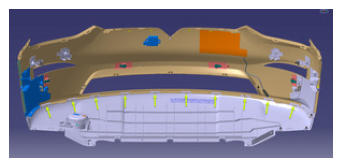

    G15389322Courtesy of TESLA, INC.
    G15389323Courtesy of TESLA, INC.

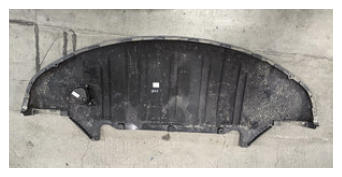

    G15389324Courtesy of TESLA, INC.
  3. Install the bolts (x2) and secure the clips (x4) that attach the valance to the front fascia assembly.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Ratcheting Combination wrench Flex head 10 mm
    • 10 mm socket
    • Ratchet/torque wrench

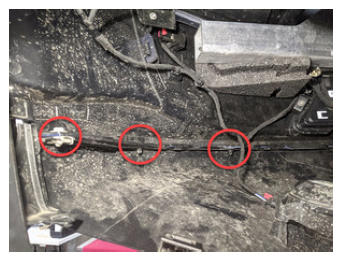

    G15389325Courtesy of TESLA, INC.

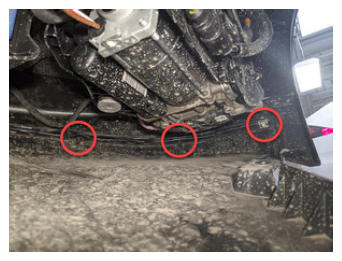

    G15389326Courtesy of TESLA, INC.

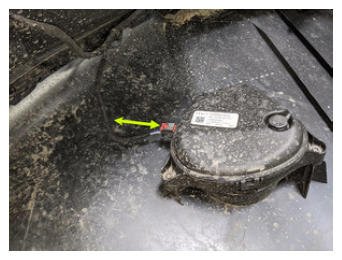

  4. Engage the locking tab to connect the pedestrian warning speaker electrical connector.
    G15389327Courtesy of TESLA, INC.
  5. Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace) .
  6. Press the brake pedal to turn on drive rails.
  7. Turn the steering wheel fully to the right.
  8. HW4 vehicles only:  Install the clips (x5) and the tabs (x10) to secure the LH front fender garnish to the vehicle.
    NOTE: Ensure that all clips and tabs are installed in place.
    G00659096Courtesy of TESLA, INC.
    G00659098Courtesy of TESLA, INC.
  9. Install the bolts (x2) that attach the LH front wheel fairing to the valance.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
    • 10 mm deep socket
    • Ratchet/torque wrench
    G00659095Courtesy of TESLA, INC.
  10. Remove the clips (x3) and the bolt that attach the LH front wheel liner to the valance, and then move the front portion of wheel liner backwards to access the fairing.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Cordless Ratchet/Impact Driver
    • Torx T30 socket
    • Ratchet/torque wrench
    G00659092Courtesy of TESLA, INC.
    G00659093Courtesy of TESLA, INC.
    G00659094Courtesy of TESLA, INC.
  11. Repeat step  6 to  10 for the RH side.
    NOTE: The fasteners that secure the RH front wheel liner to the valance are 4 clips.
  12. Press the brake pedal to turn on drive rails.
  13. Turn the steering wheel back to center.
  14. Raise both front windows and close the LH front door.
