Air Extractor - Rear - Inner - LH - Remove And Replace: Remove

  1. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  2. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .

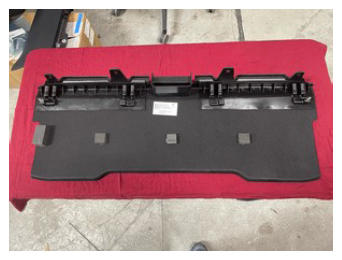

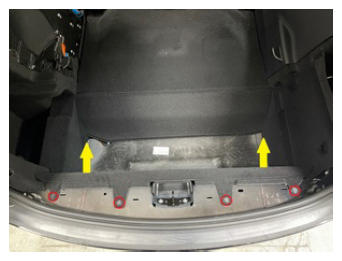

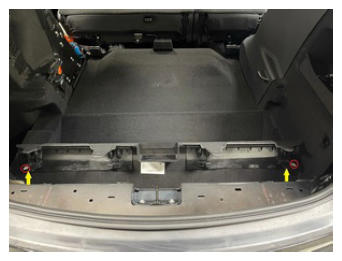

  3. Release the push clips (x4) and clips (x2) that attach the rear wall load support.
    G15388989Courtesy of TESLA, INC.
    G15388990Courtesy of TESLA, INC.
    G15388991Courtesy of TESLA, INC.
  4. Remove the LH inner rear air extractor shroud. See SHROUD - AIR EXTRACTOR - REAR - INNER - LH (REMOVE AND REPLACE) .
  5. Remove the trailer hitch cover. See COVER - TRAILER HITCH (REMOVE AND REPLACE) .

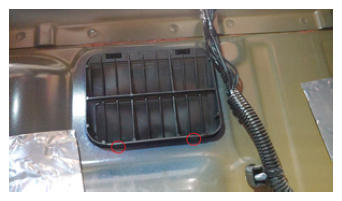

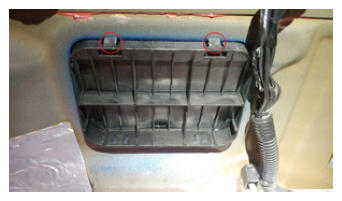

  6. Release the clips (x4) that attach the LH inner rear air extractor to body.
    NOTE: Release the clips from the body by pressing inward.
    G15388992Courtesy of TESLA, INC.
    G15388993Courtesy of TESLA, INC.

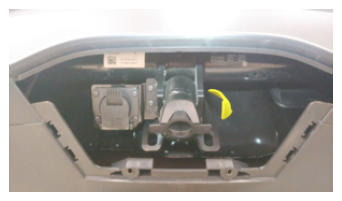

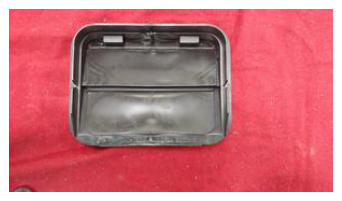

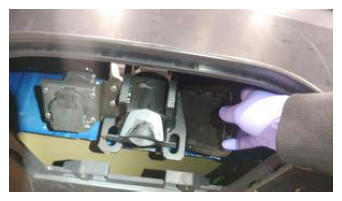

  7. Remove the LH inner rear air extractor from the vehicle.
    NOTE: Slide the extractor from behind the tow hitch on the right hand side.
    G15388994Courtesy of TESLA, INC.
    G15388995Courtesy of TESLA, INC.
    G15388996Courtesy of TESLA, INC.
