- Remove the LH headlight. See Headlight - LH (Remove and Replace)
.

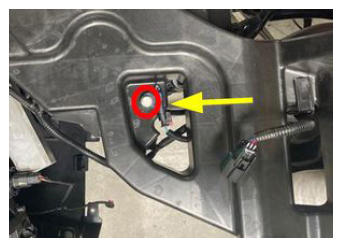

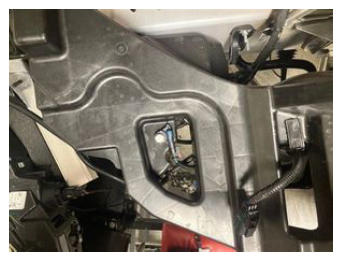

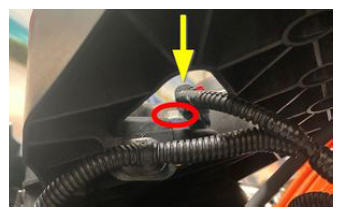

- Remove the bolt that attaches the LH acceleration sensor to the top of the LH headlight bracket.
NOTE:
10 mm. Torque 7 N.m.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

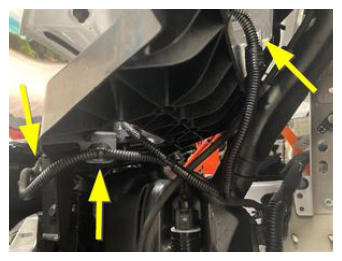

- Release the clips (x3) that attach the electrical harnesses to the LH headlight bracket.
 Courtesy of TESLA, INC.
|

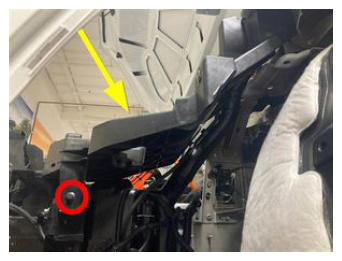

- Remove the bolt that attaches the LH headlight bracket, and then remove the bracket from the vehicle.
NOTE:
10 mm. Torque 8 N.m.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
