Antenna - MIMO - LH - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Move the driver seat rearward.
- Remove the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace)

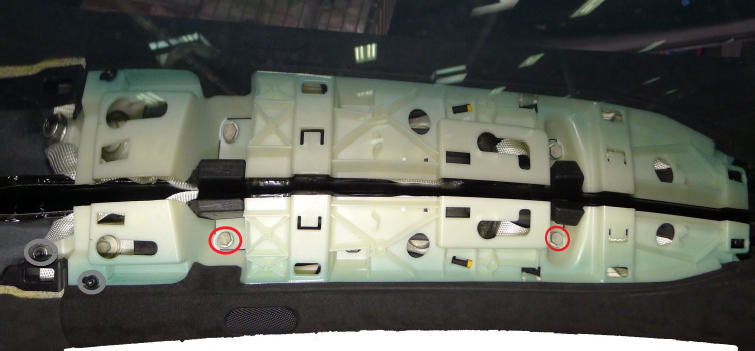

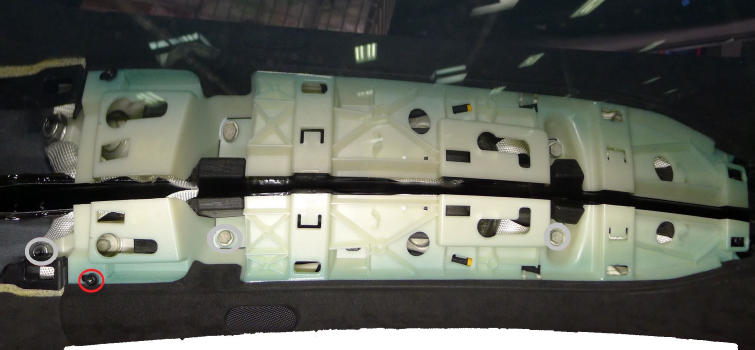

- Remove the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Remove the screw that attaches the LH upper A-pillar trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- T20 socket

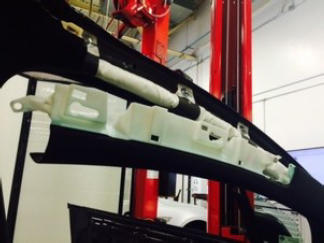

- Release the clips (x6) that attach the LH upper A-pillar trim to the A-pillar, and then move the trim aside to gain access to the headliner.

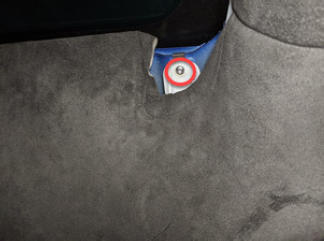

- Remove the screw that attaches the LH front of the headliner to the vehicle.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

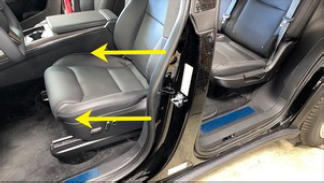

- Move the driver seat forward.

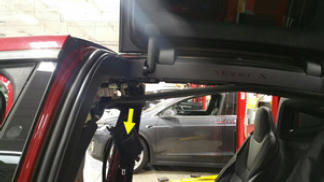

- Release the LH front door seal from the B-pillar trim.

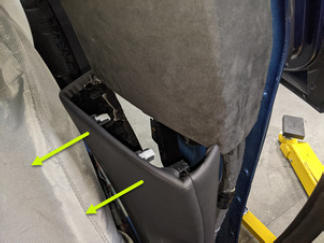

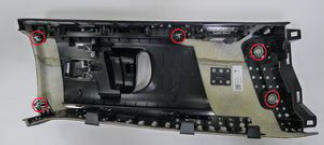

- Release the clips (x5) that attach the upper portion of the LH lower B-pillar trim to the LH upper B-pillar trim.

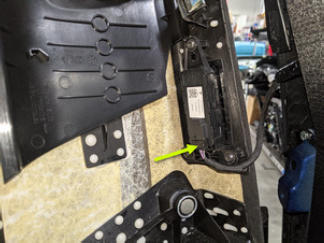

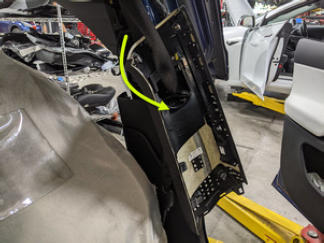

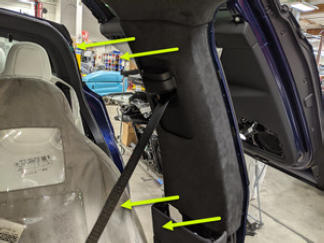

- Release the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar, and then disconnect the LH falcon wing door button electrical connector.
- Move the LH upper B-pillar trim aside.
- Repeat step 2 through step 12 for the RH side of the vehicle.

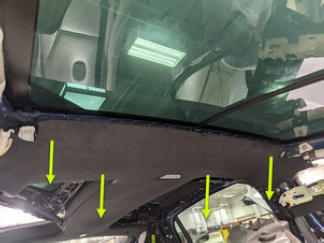

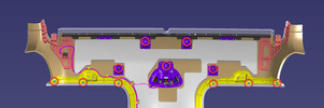

- Release the clips (x11) that attach the front portion of the headliner to the vehicle, and then release the headliner from the vehicle.

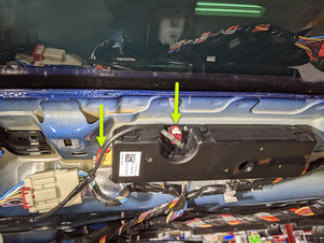

- Release the locking tabs, and then disconnect the LH MIMO antenna electrical connectors (x2).

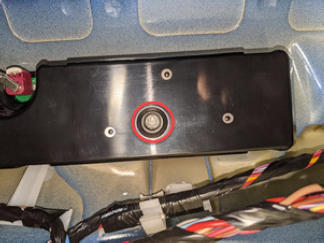

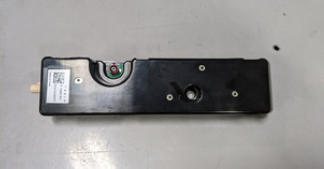

- Remove the bolt that attaches the LH MIMO antenna to the vehicle.NOTE: The bolt is captive in the antenna housing and cannot be removed from the antenna.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket

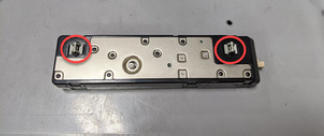

- Release the clips (x2) that attach the LH MIMO antenna to the vehicle, and then remove the antenna from the vehicle.
