Antenna - Satellite Radio - Remove And Replace: Install

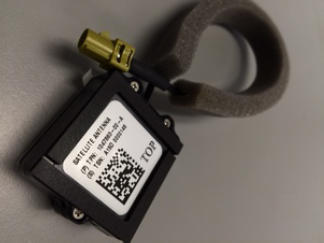

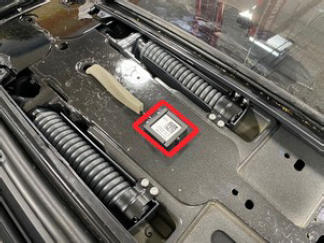

  1. Position the satellite radio antenna on the vehicle, remove the antenna adhesive cover, and then install the antenna on the vehicle.
    NOTE: Route the antenna harness through the hole in the top of the body.
    G15409184Courtesy of TESLA, INC.
    G15409185Courtesy of TESLA, INC.

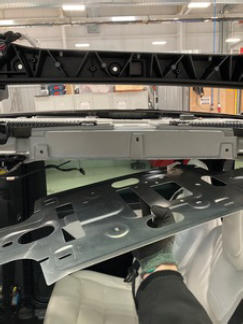

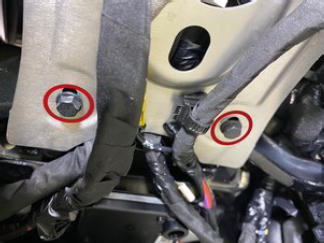

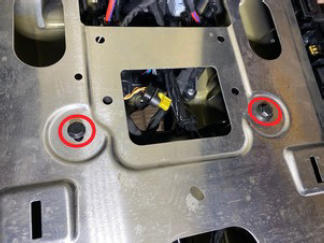

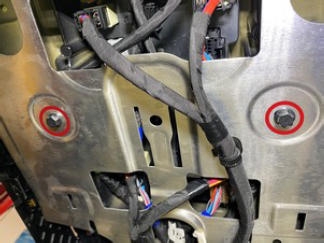

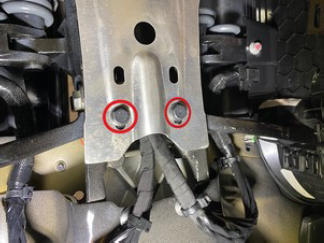

  2. Position the closing panel on the vehicle, and then install the bolts (x8) that attach the closing plate to the vehicle.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • 6 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    G15409186Courtesy of TESLA, INC.
    G15409187Courtesy of TESLA, INC.
    G15409188Courtesy of TESLA, INC.
    G15409189Courtesy of TESLA, INC.
    G15409190Courtesy of TESLA, INC.

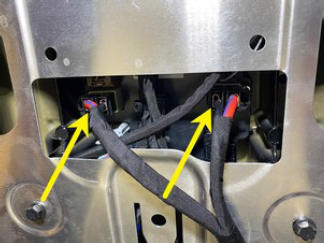

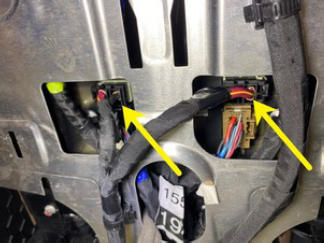

  3. Install the falcon EM controller connectors (x4).
    G15409191Courtesy of TESLA, INC.
    G15409192Courtesy of TESLA, INC.

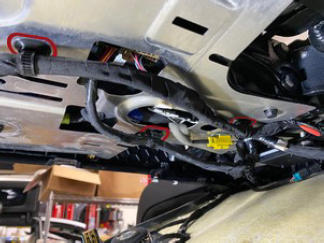

  4. Install the clips (x3) that attach the satellite radio antenna harness to the closing plate.
    G15409193Courtesy of TESLA, INC.

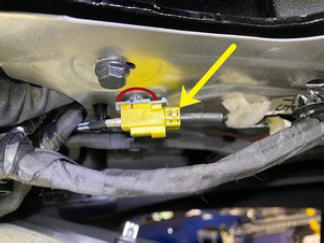

  5. Install the clip that attaches the satellite radio antenna harness to the closeout plate, and then connect the antenna harness connector.
    G15409194Courtesy of TESLA, INC.
  6. Install the center spine applique. See Applique - Spine - Center (Remove and Replace) .

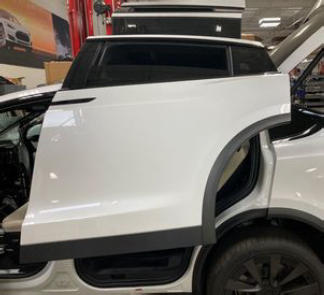

  7. Partially open the LH falcon wing door.
    G15409195Courtesy of TESLA, INC.
  8. Install the LH upper rear door glass assembly. See Door Glass Assembly - Rear - Upper - LH (Remove and Replace) .
  9. Open the LH falcon wing door.
  10. Install the mid rear LH door trim gap hider. See Gap Hider - Door Trim - LH - Rear - Mid (Remove and Replace) .
  11. Install the LH center rear door trim bracket. See Bracket - Rear Door Trim - Center - LH (Remove and Replace) .
  12. Install the LH front upper rear door trim bracket. See Bracket - Rear Door Trim - Upper - Front - LH (Remove and Replace) .
  13. Remove the LH rear upper rear door trim bracket. See Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace) .
  14. Install the LH upper rear door trim panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace) .
  15. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
  16. Install the headliner. See Headliner (Remove and Replace) .

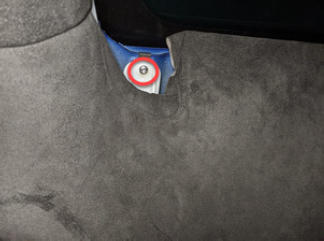

  17. Install the screw that attaches the RH front end of the headliner to the vehicle.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T20 socket
    G15409196Courtesy of TESLA, INC.

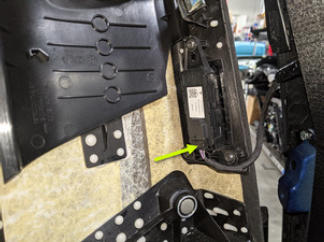

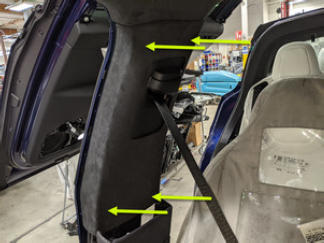

  18. Connect the RH falcon wing door button electrical connector, and then install the clips (x3) and magnets (x2) that attach the RH upper B-pillar trim to the B-pillar.
    NOTE: Replace the clips if damaged.
    G15409197Courtesy of TESLA, INC.
    G15409198Courtesy of TESLA, INC.

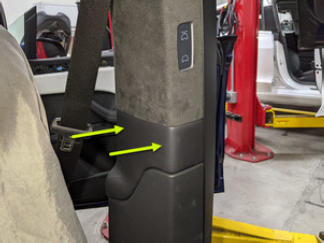

  19. Install the clips (x5) that attach the upper portion of the RH lower B-pillar trim to B-pillar.
    G15409199Courtesy of TESLA, INC.

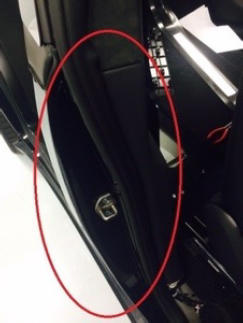

  20. Fully seat the RH front door seal on the B-pillar trim.
    G15409200Courtesy of TESLA, INC.

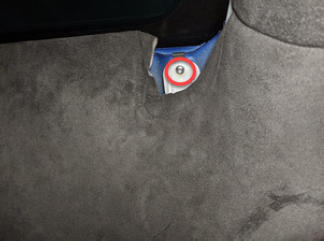

  21. Install the screw that attaches the LH front end of the headliner to the vehicle.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T20 socket
    G15409201Courtesy of TESLA, INC.

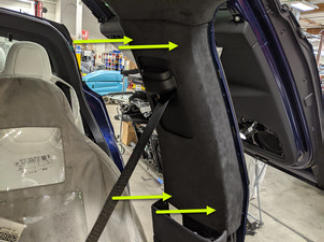

  22. Connect the LH falcon wing door button electrical connector, and then install the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar.
    NOTE: Replace the clips if damaged.
    G15409202Courtesy of TESLA, INC.

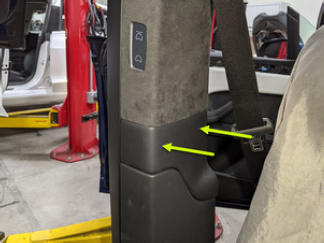

  23. Install the clips (x5) that attach the upper portion of the LH lower B-pillar trim to B-pillar.
    G15409203Courtesy of TESLA, INC.

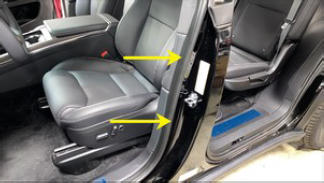

  24. Fully seat the LH front door seal on the B-pillar trim.
    G15409204Courtesy of TESLA, INC.
  25. Move the LH and RH front seats into original position.

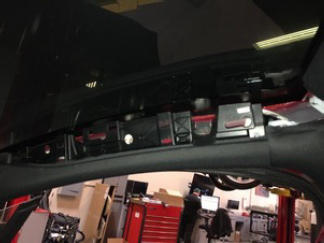

  26. Position the RH upper A-pillar trim for installation.
    G15409205Courtesy of TESLA, INC.
  27. Install the bolts (x2) that attach the RH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 10 mm hex
    • Flex head ratchet/flex head torque wrench
    G15409206Courtesy of TESLA, INC.
  28. Install the screw that attaches the RH upper A-pillar trim to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15409207Courtesy of TESLA, INC.

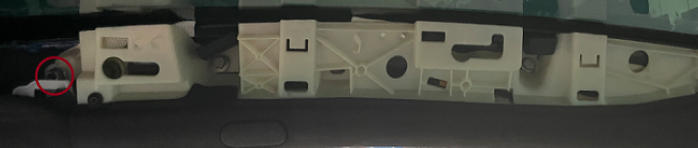

  29. Install a new nut that attaches the RH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    G15409208Courtesy of TESLA, INC.

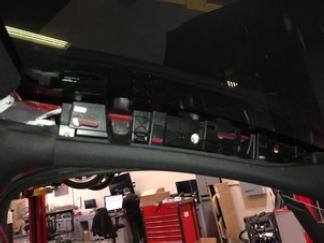

  30. Position the LH upper A-pillar trim for installation.
    G15409209Courtesy of TESLA, INC.

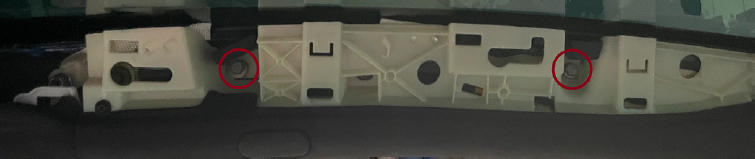

  31. Install the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 10 mm hex
    • Flex head ratchet/flex head torque wrench
    G15409210Courtesy of TESLA, INC.

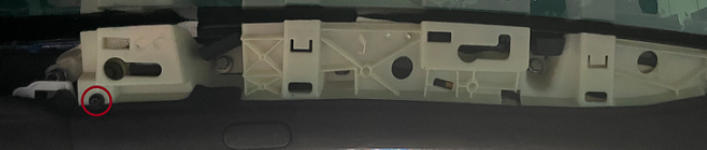

  32. Install the screw that attaches the LH upper A-pillar trim to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15409211Courtesy of TESLA, INC.
  33. Install the LH and RH sun visor bezel A-pillar trims. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
  34. Install a new nut that attaches the LH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    G15409212Courtesy of TESLA, INC.
  35. Install the LH and RH rear coat hooks. See Coat Hook - Rear - LH (Remove and Replace) .
  36. Install the LH and RH upper C-pillar trims. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
  37. Install the LH and RH mid C-pillar trims. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  38. Install the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  39. Unfold the LH and RH 3rd row seats into original position.
  40. Close the liftgate.
  41. Verify the XM radio is functioning properly.
    G15409213Courtesy of TESLA, INC.
  42. Raise the LH and RH front windows.
  43. Close all four doors.
