12V Power Socket - Center Console - Remove And Replace: Install

  1. Position the 12V power socket onto the center console service panel, and then install the screws (x2) that attach the power socket to the service panel.

    1.5 N.m (1.1 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket

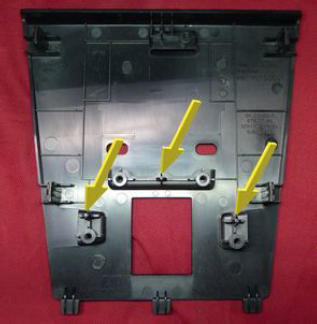

    G15437891Courtesy of TESLA, INC.

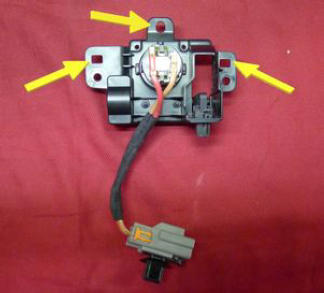

    G15437892Courtesy of TESLA, INC.

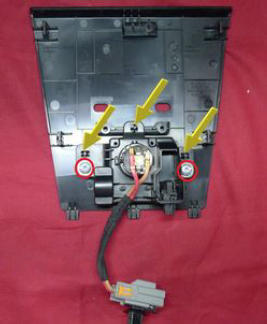

    G15437893Courtesy of TESLA, INC.
  2. Position the front USB hub to the center console service panel assembly, and then install the screws (x3) that attach the USB hub to the assembly.
    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket

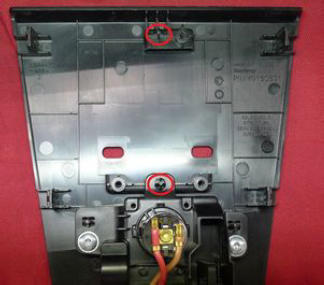

    G15437894Courtesy of TESLA, INC.

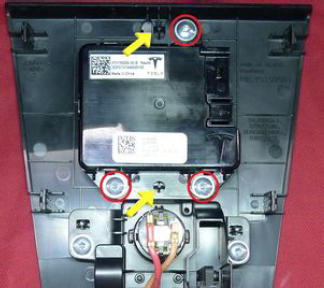

    G15437895Courtesy of TESLA, INC.

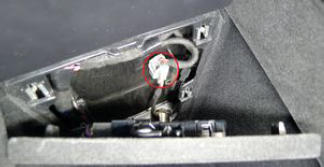

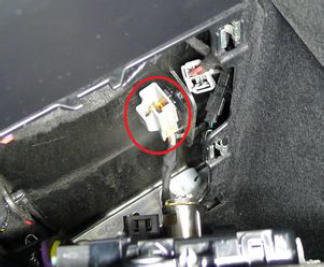

  3. Position the center console service panel into the center console assembly, connect the electrical connectors (x3), and then secure the clip that attaches the electrical connector to the service panel.

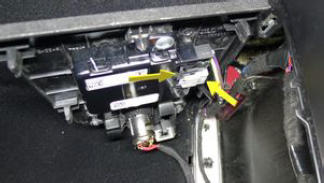

    G15437896Courtesy of TESLA, INC.
    G15437897Courtesy of TESLA, INC.
    G15437898Courtesy of TESLA, INC.

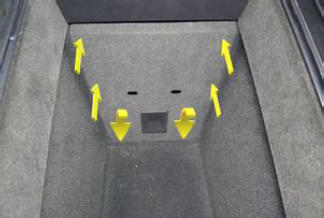

  4. Secure the clips (x4) that attach the center console service panel assembly to the center console.
    NOTE: Make sure the connector X1131 and X881 is positioned to the right of the main harness for USB hub clearance.

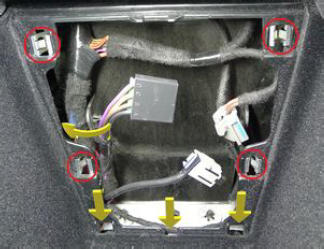

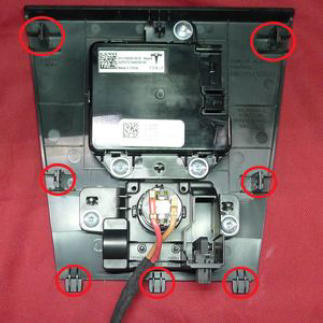

    G15437899Courtesy of TESLA, INC.
    G15437900Courtesy of TESLA, INC.
    G15437901Courtesy of TESLA, INC.
  5. Close the center console.
  6. Move the front passenger seat to the original position.
  7. Raise the RH front window and close the RH front door.
