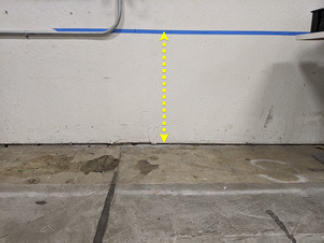

- Apply tape to wall 33.4 (85 cm) from the ground.
 Courtesy of TESLA, INC.
|

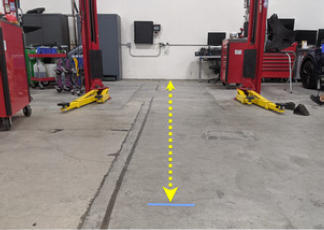

- Apply tape to floor 25' (7.6 m) from the wall.
 Courtesy of TESLA, INC.
|

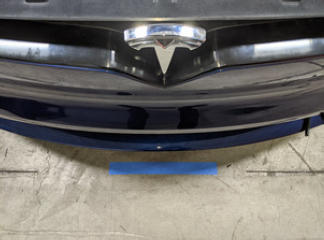

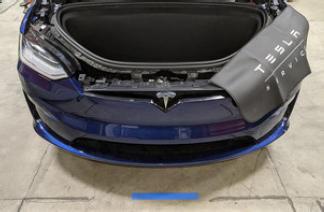

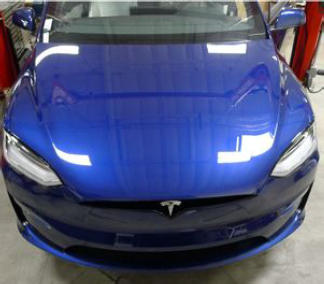

- Park vehicle on flat level surface perpendicular to wall and align front fascia with tape on floor.
NOTE:
Choose a dark work area with low ambient lighting for best results, Ensure tire pressure is set to specification.
 Courtesy of TESLA, INC.
|

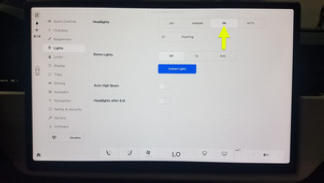

- Switch headlights ON through UI.
NOTE:
Via center display > Controls > Lights > Headlights.
 Courtesy of TESLA, INC.
|
- Set vehicle ride height to "Standard".
NOTE:
Via center display > Controls > Suspension > Standard, Ensure all tire pressures are set to specification to ensure accurate ride height.
 Courtesy of TESLA, INC.
|

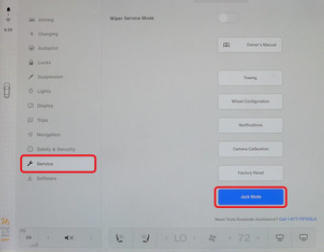

- Set air suspension into "Jack Mode".
NOTE:
Via center display > Controls > Service > Jack Mode.
 Courtesy of TESLA, INC.
|

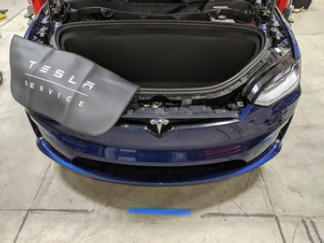

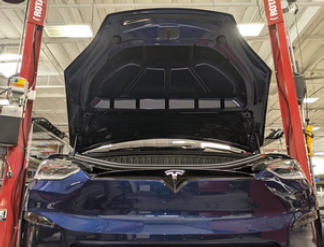

- Open hood.
NOTE:
Via center display > Controls > Frunk Open.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

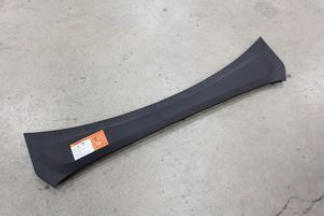

- Remove rear underhood apron.
NOTE:
11x clips.
 Courtesy of TESLA, INC.
|

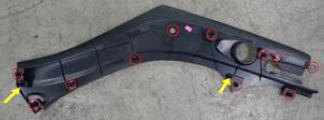

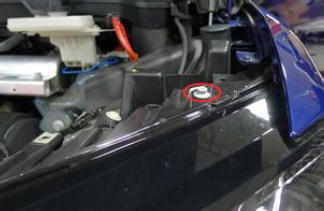

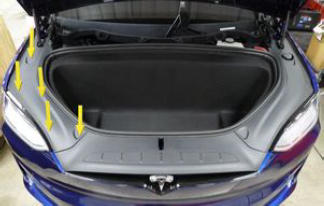

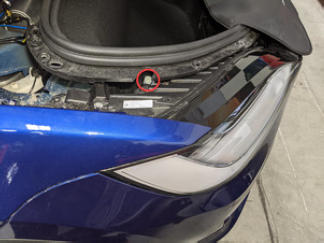

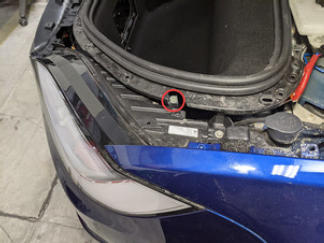

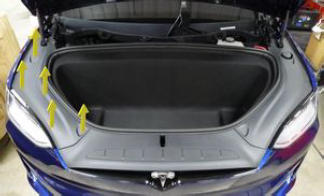

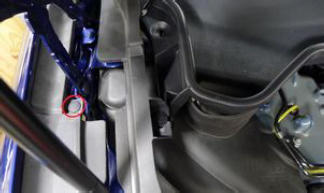

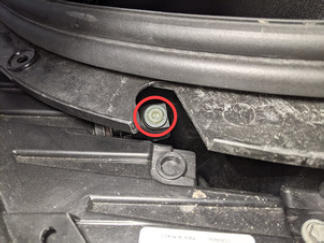

- Remove LH underhood apron.
NOTE:
11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

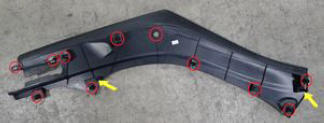

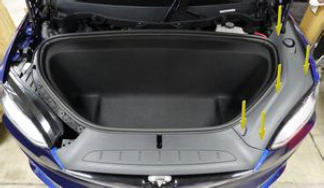

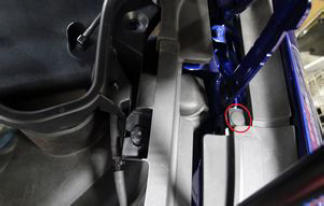

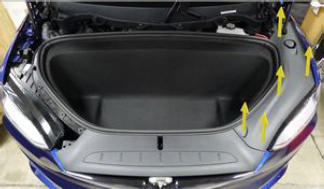

- Remove RH underhood apron.
NOTE:
11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

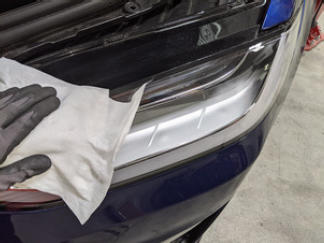

- Clean headlamps.
NOTE:
Allow 1 minute dry time.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Completely cover RH headlight.
 Courtesy of TESLA, INC.
|

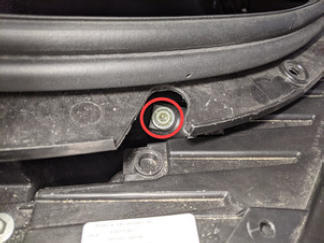

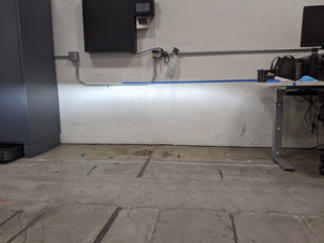

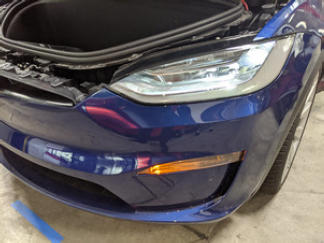

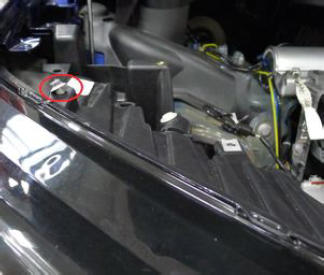

- Adjust LH beam level using headlamp adjuster.
NOTE:
Turn adjuster counterclockwise to raise and clockwise to lower beam level, Adjust so that top left part of beam aligns with tape mark on wall, Do not sit in vehicle as this will affect headlamp height.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove cover from RH headlight then completely cover LH headlight.
 Courtesy of TESLA, INC.
|

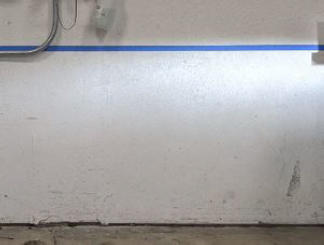

- Adjust RH beam level using headlamp adjuster.
NOTE:
Turn adjuster counterclockwise to raise and clockwise to lower beam level, Adjust so that top right part of beam aligns with tape mark on wall, Do not sit in vehicle as this will affect headlamp height.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove cover from LH headlight.
 Courtesy of TESLA, INC.
|
- Install LH underhood apron.
NOTE:
11x clips, 2 datums.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install RH underhood apron.
NOTE:
11x clips, 2x datums.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install rear underhood apron.
NOTE:
11x clips.
- Close hood.
 Courtesy of TESLA, INC.
|

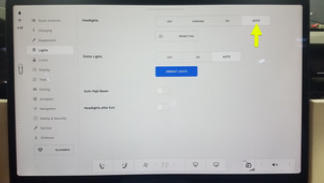

- Switch headlights to AUTO through UI.
NOTE:
Via Controls > Lights > Headlights.
 Courtesy of TESLA, INC.
|
- Remove air suspension from "Jack Mode".
NOTE:
Using center display > Controls > Service > "Jack Mode".
 Courtesy of TESLA, INC.
|
