Touchscreen - Rear - Remove And Replace: Install

  1. Position the rear touchscreen into the airwave cap assembly, and then install the screws (x4) that attach the touchscreen to the assembly.

    1 N.m (.7 ft-lbs)

    NOTE: Slide the touchscreen into the airwave cap through the top of the assembly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit

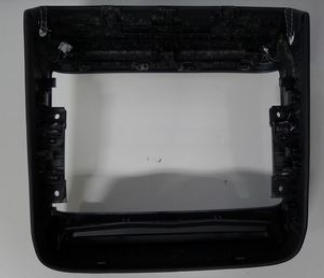

    G15408657Courtesy of TESLA, INC.
    G15408658Courtesy of TESLA, INC.
    G15408659Courtesy of TESLA, INC.
  2. Position the center console airwave cap surround brackets onto the airwave cap assembly, and then install the screws (x4) that attach the brackets to the assembly.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit

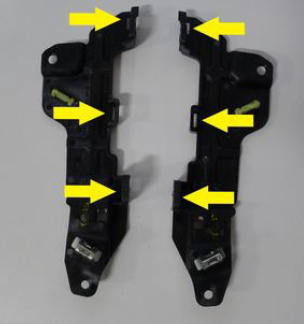

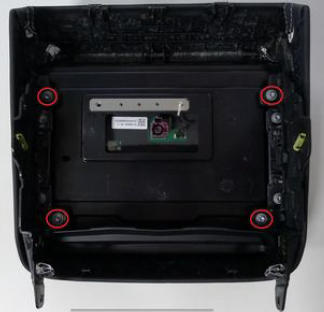

    G15408660Courtesy of TESLA, INC.
    G15408661Courtesy of TESLA, INC.
  3. Position the ground harness onto the center console air wave cap assembly, and then install the screw that attaches the harness to the assembly.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit

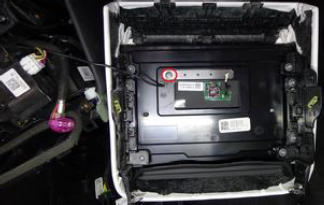

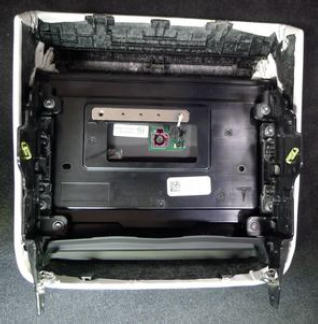

    G15408662Courtesy of TESLA, INC.
    G15408663Courtesy of TESLA, INC.
  4. Position the center console airwave cap assembly onto the center console, connect the electrical connector, and then install the screws (x6) and secure the tabs (x3) that attach the airwave cap assembly to the center console.

    1 N.m (.7 ft-lbs)

    NOTE: Align the airwave cap with the center console assembly, and then insert the assembly straight inward.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit

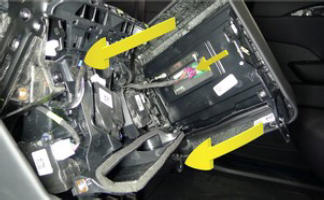

    G15408664Courtesy of TESLA, INC.

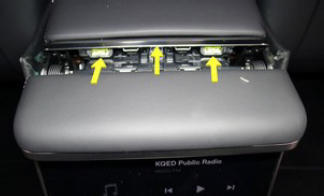

    G15408665Courtesy of TESLA, INC.

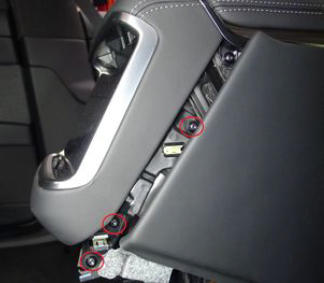

    G15408666Courtesy of TESLA, INC.

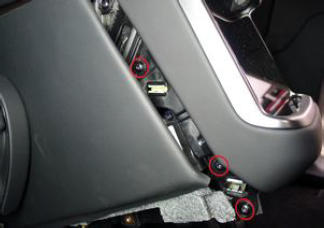

    G15408667Courtesy of TESLA, INC.
  5. Remove the shop towel from the center console assembly, and then secure the clips (x4) that attach the rear of the LH center console side panel to the center console. Repeat this step for the RH side.

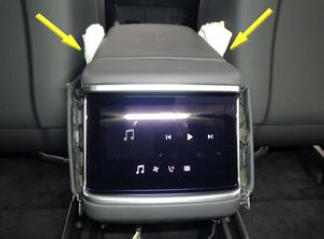

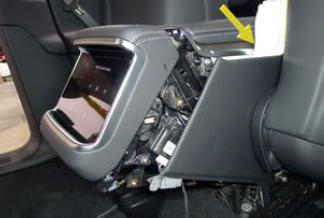

    G15408668Courtesy of TESLA, INC.
    G15408669Courtesy of TESLA, INC.
    G15408670Courtesy of TESLA, INC.
    G15408671Courtesy of TESLA, INC.
  6. Install the 2nd row cup holder assembly. See Cup Holder - 2nd Row (Remove and Replace) .
  7. Install the center console lower rear panel assembly. See Panel - Lower Rear - Center Console (Remove and Replace) .
  8. Move RH front seat to original position
  9. Release the tabs (x2) that attach the instrument panel service panel to the instrument panel, and then release the service panel from the instrument panel.
    NOTE: 2x tabs, 4x datums, Release top tabs and slide rearward

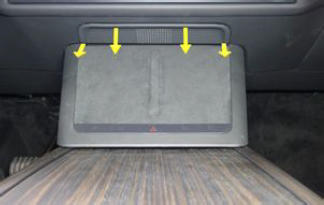

    G15408672Courtesy of TESLA, INC.
    G15408673Courtesy of TESLA, INC.

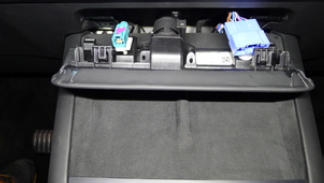

    G15408674Courtesy of TESLA, INC.
  10. Connect a laptop with Toolbox 3 to the vehicle.
  11. In Toolbox, click the Actions  tab, and then search for "CAN Redeploy".
  12. Click SERVICE CAN REDEPLOY  , and then click Run  and allow the routine to complete.
    NOTE: Click the X at the top right of window to close once complete.
    NOTE: The routine will state pass but the update will continue to run in the background.
    NOTE: The UI will show update progress.
  13. Disconnect Toolbox and remove the laptop from the vehicle.
  14. Position the instrument panel service panel into the instrument panel, and then secure the tabs (x2) that attach the service panel to the instrument panel.
    NOTE: Slide the panel forward to engage the datums, and then secure the tabs upward into the IP.

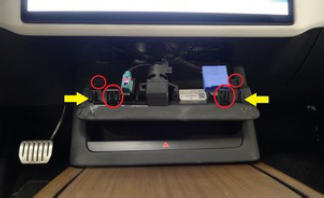

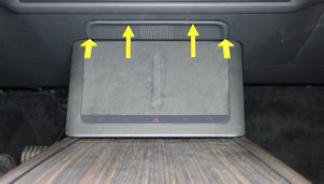

    G15408675Courtesy of TESLA, INC.
    G15408676Courtesy of TESLA, INC.
  15. Move the driver seat to the original position.
  16. Raise the LH front window and close all the doors.
