Mechanism - Pivot - Touchscreen - Remove and Replace: Remove

  1. Remove the touchscreen.
  2. Remove and discard the bolts (x2) that attach the touchscreen pivot mechanism to the display housing.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench

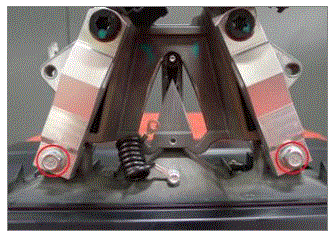

    G00660392Courtesy of TESLA INC.
  3. Flex head ratchet/flex head torque wrench
    NOTE: Lift and tilt the mechanism off of the display housing.

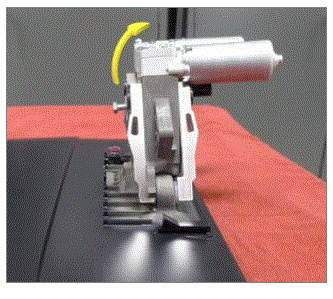

    G00660393Courtesy of TESLA INC.

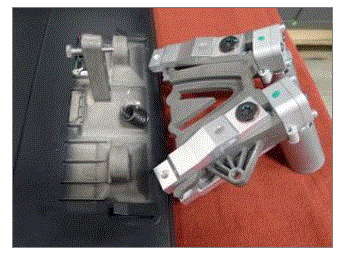

    G00660394Courtesy of TESLA INC.
