Tweeter - Liftgate - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.
  3. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  4. Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace) .

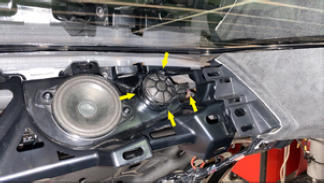

  5. Release the clips (x3) that attach the LH liftgate tweeter to the liftgate, disconnect the electrical connector, and then remove the tweeter from the liftgate.
    G15409082Courtesy of TESLA, INC.
    G15409083Courtesy of TESLA, INC.
