Reservoir - Windshield Washer - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  4. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  5. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  6. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install) .

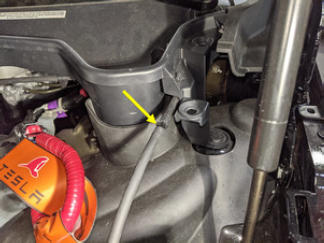

  7. Disconnect the reservoir washer hose from the straight hose coupling at the cowl screen.
    G15438356Courtesy of TESLA, INC.

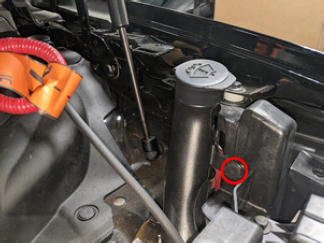

  8. Remove the clip that attaches the windshield washer reservoir neck to the body, and then release the neck from the body.
    G15438357Courtesy of TESLA, INC.
  9. Remove the LH front wheel. See Wheel (Remove and Install) .
  10. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .

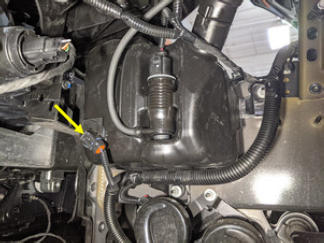

  11. Disconnect the windshield washer reservoir level sensor electrical connector.
    G15438358Courtesy of TESLA, INC.

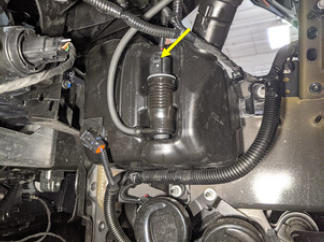

  12. Disconnect the windshield washer reservoir pump electrical connector.
    G15438359Courtesy of TESLA, INC.

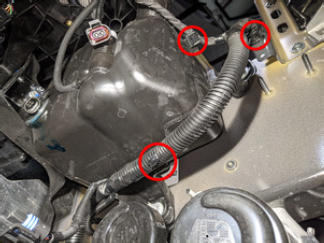

  13. Release the clips (x3) that attach the frunk harness to the windshield washer reservoir.
    G15438360Courtesy of TESLA, INC.

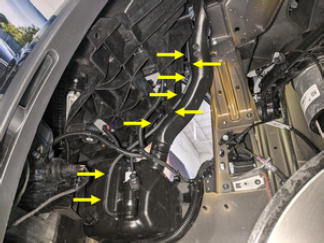

  14. Release the reservoir washer hose from the hooks (x6) and tabs (x2) on the windshield washer reservoir, and then remove the hose from the vehicle.
    G15438361Courtesy of TESLA, INC.

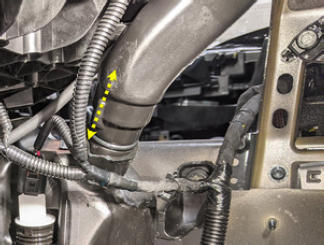

  15. Separate the windshield washer reservoir neck from the windshield washer reservoir.
    NOTE: Inspect the O-ring and replace if damaged.
    G15438362Courtesy of TESLA, INC.

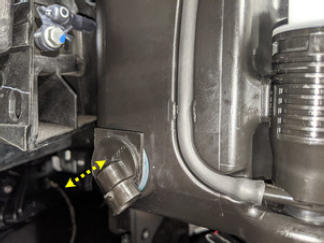

  16. Remove the windshield washer reservoir level sensor from the windshield washer reservoir, and then allow the washer fluid to drain.
    G15438363Courtesy of TESLA, INC.

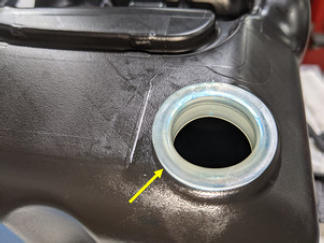

  17. Inspect the windshield washer reservoir level sensor seal for damage. Replace the seal if damaged.
    G15438364Courtesy of TESLA, INC.

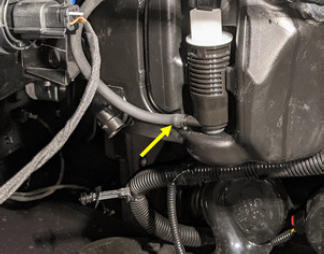

  18. Disconnect the reservoir washer hose from the windshield washer reservoir pump.
    G15438365Courtesy of TESLA, INC.

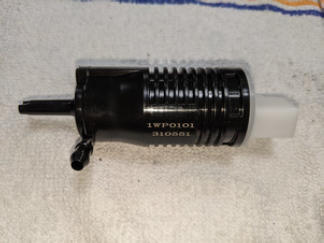

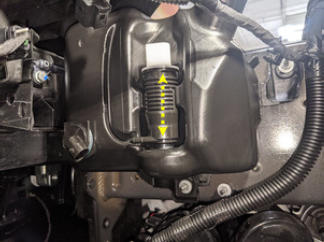

  19. Pull the windshield washer reservoir pump upward to release it from the windshield washer reservoir, and then remove the pump from the vehicle.
    G15438366Courtesy of TESLA, INC.
    G15438367Courtesy of TESLA, INC.

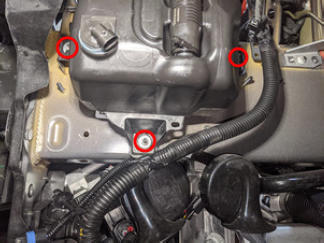

  20. Remove the nuts (x3) that attach the windshield washer reservoir to the vehicle, and then remove the reservoir from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15438368Courtesy of TESLA, INC.
