Horn - High Tone - Remove and Replace: Install

Position the high tone horn on the horn assembly bracket, and then install the nut that attaches the high tone horn to the bracket.9 N.m (6.6 ft-lbs)
Tip:

Use of the following tool(s) is recommended:
- 10 mm socket
- Adapter 1/4 in Dr. to 1/4 in Hex Bit Quick Change
- Cordless 1/4 in Hex Driver
- Torque wrench with angle measurement
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Position the horn assembly on the vehicle, and then install the nut that attaches the horn assembly to the vehicle body. 12 N.m (8.8 ft-lbs)
Tip:

Use of the following tool(s) is recommended:
- 2 in extension
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

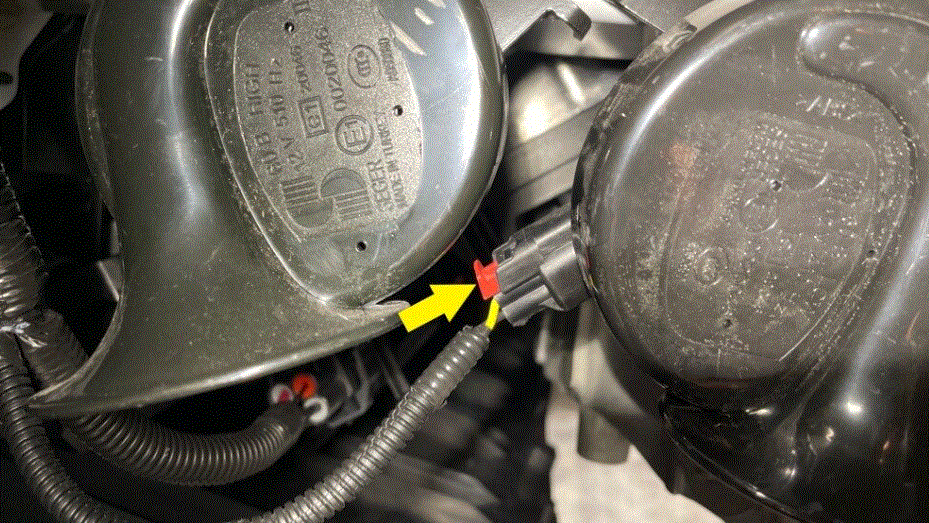

Connect the high tone horn locking connector.
NOTE: Verify the red locking tab is fully seated and engaged.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

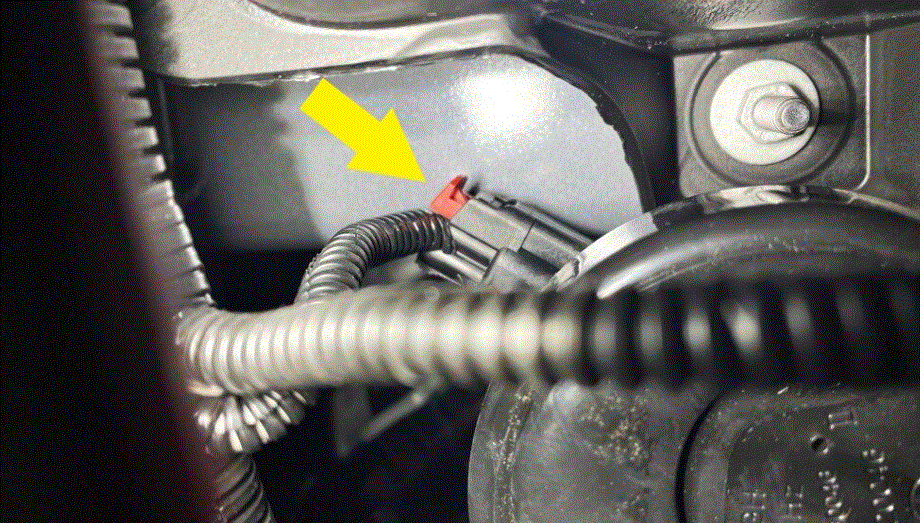

Connect the low tone horn locking connector.
NOTE: Verify the red locking tab is fully seated and engaged.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the clips (x6) and push nut that attach the front portion of the LH front wheel house liner to the vehicle body.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH front wheel. See WHEEL - REMOVE AND INSTALL
Raise the LH front window.
Close the LH front door.
