12V Power Socket - Rear Trunk - Remove And Replace: Install

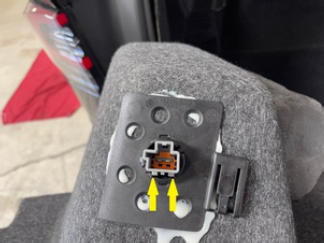

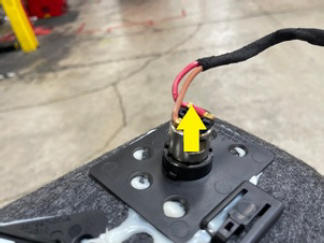

  1. Position the rear trunk 12V power socket into the RH trunk side trim, line up the connector with the slots in the socket, feed the connector through the opening, and then secure the tabs (x2) that attach the socket to the side trim.
    G15437906Courtesy of TESLA, INC.
    G15437907Courtesy of TESLA, INC.
  2. Install the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace) .
