Light - Fog - Front - LH - Remove And Replace: Install

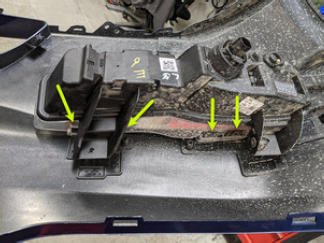

  1. Position the LH front fog light onto the front fascia assembly, and then secure the tabs (x4) that attach the fog light to the assembly.
    G15438139Courtesy of TESLA, INC.

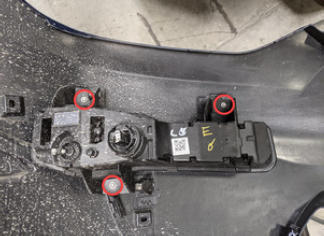

  2. Install the screws (x3) that attach the LH front fog light to the front fascia assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15438140Courtesy of TESLA, INC.

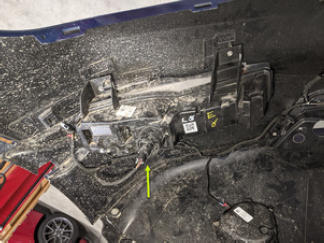

  3. Connect the LH front fog light electrical connector.
    G15438141Courtesy of TESLA, INC.
  4. Install the front fascia assembly onto the vehicle. See Fascia Assembly - Front (Remove and Install) .
