Camera - Rear Facing (HW3) - Remove And Replace: Remove

  1. Remove the liftgate applique. See Applique - Liftgate (Remove and Replace) .
  2. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .

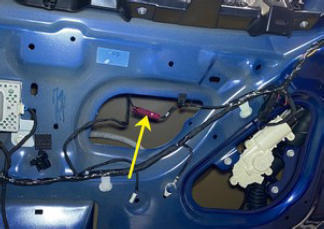

  3. Disconnect the rear facing camera electrical connector from the RH liftgate harness.
    G15437802Courtesy of TESLA, INC.

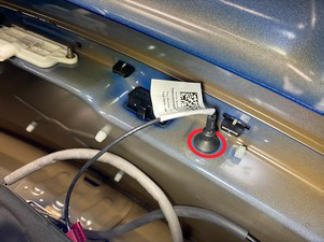

  4. Release the rear facing camera grommet from the liftgate.
    G15437803Courtesy of TESLA, INC.
  5. Remove the liftgate applique bracket. See Bracket - Applique - Liftgate (Remove and Replace) .

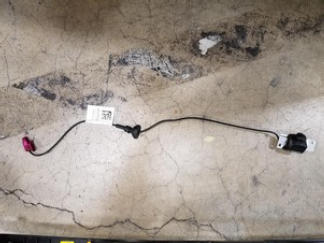

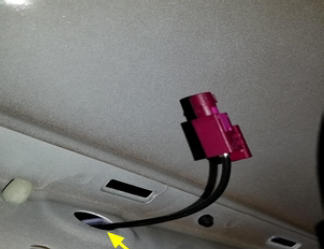

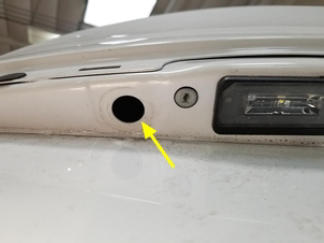

  6. Feed the rear facing camera electrical connector and grommet through the liftgate opening to remove it from the liftgate.
    G15437804Courtesy of TESLA, INC.
    G15437805Courtesy of TESLA, INC.
    G15437806Courtesy of TESLA, INC.
