Closeout Panel - Door - Rear - LH - Remove And Replace: Install

  1. Install the clip into the LH rear door closeout panel.

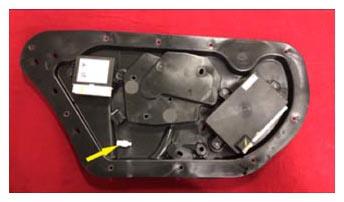

    G15392310Courtesy of TESLA, INC.
  2. Install the dummy plug into the LH rear door closeout panel.
    G15392311Courtesy of TESLA, INC.
  3. Position the LH rear door ultrasonic ECU onto the LH rear door closeout panel, and then install the screws (x2) that attach the ECU to the closeout panel.

    2.5 N.m (1.8 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket

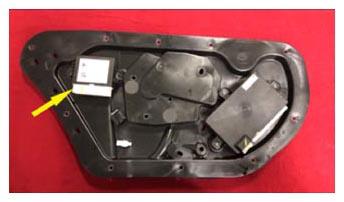

    G15392312Courtesy of TESLA, INC.
    G15392313Courtesy of TESLA, INC.

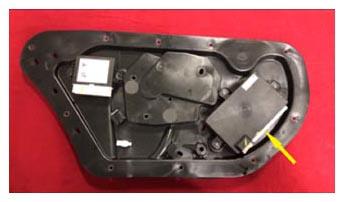

  4. Position the LH rear door controller to the LH rear door closeout panel, and then install the screws (x3) that attach the controller to the closeout panel.

    2.5 N.m (1.8 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket
    G15392314Courtesy of TESLA, INC.

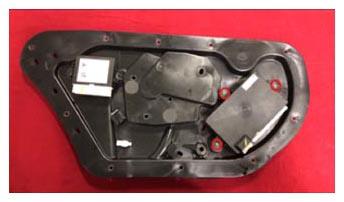

    G15392315Courtesy of TESLA, INC.

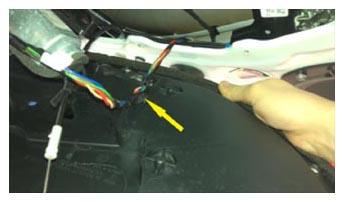

  5. Secure the clip that attaches the LH rear window regulator to the LH rear door closeout panel.
    G15392316Courtesy of TESLA, INC.
  6. Feed the door release cable through the LH rear door closeout panel, and then secure the clip.
    NOTE: Lubricate the cable grommet to aid in installation.

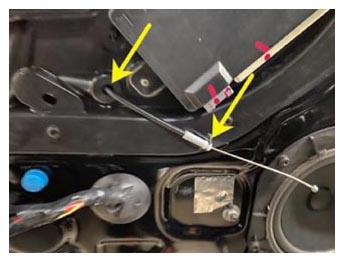

    G15392317Courtesy of TESLA, INC.
  7. Position the LH rear door window motor onto the back of the closeout panel, and then secure the tabs that attach the motor to the closeout panel.

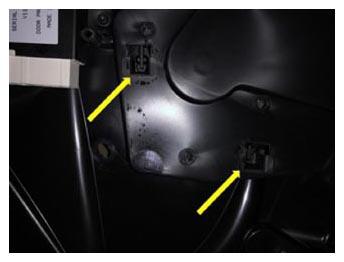

    G15392318Courtesy of TESLA, INC.

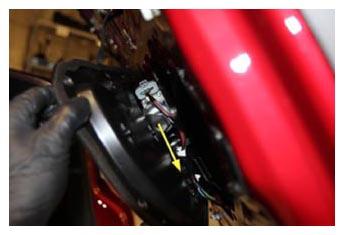

    G15392319Courtesy of TESLA, INC.

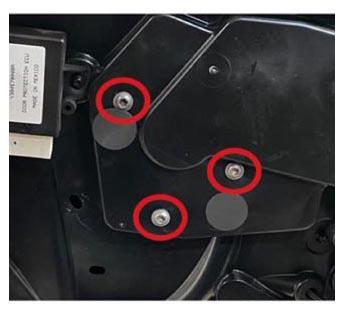

  8. Install the screws (x3) that attach the LH rear window motor to the LH rear door closeout panel.

    1.8 N.m (1.3 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T30 socket
    G15392320Courtesy of TESLA, INC.
  9. Install the screws (x10) that attach the LH rear door closeout panel to the LH rear door.

    1.8 N.m (1.3 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket

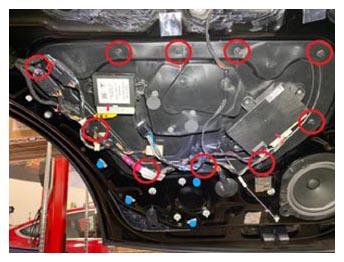

    G15392321Courtesy of TESLA, INC.

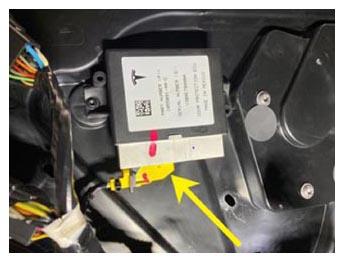

  10. Connect the LH falcon wing door protection ECU electrical connector, and then engage the locking tab.
    G15392322Courtesy of TESLA, INC.

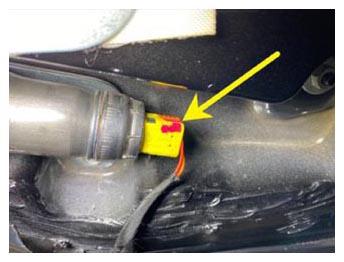

  11. Connect the LH falcon wing door air bag electrical connector, and then engage the orange locking tab.
    G15392323Courtesy of TESLA, INC.
  12. Connect the electrical connectors (x2) to the LH falcon wing door module.

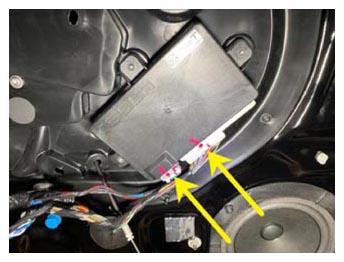

    G15392324Courtesy of TESLA, INC.
  13. Install the clips (x7) that attach the harnesses and connectors to the LH rear door closeout panel.
    G15392325Courtesy of TESLA, INC.
  14. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
  15. Install the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace) .
  16. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
  17. Connect LV power. See LV Power (Disconnect and Connect) .
  18. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  19. Close the hood.
  20. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
