Bumper - Front - Rear Door - Upper - LH - Remove And Replace: Install

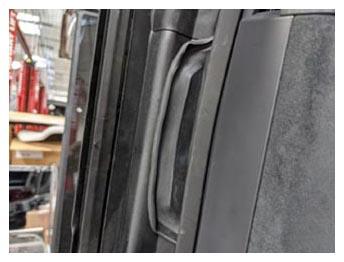

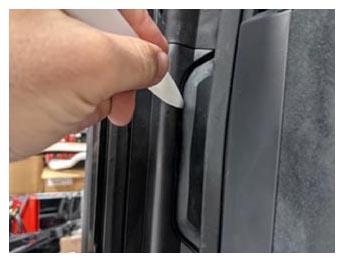

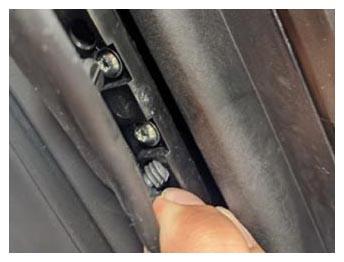

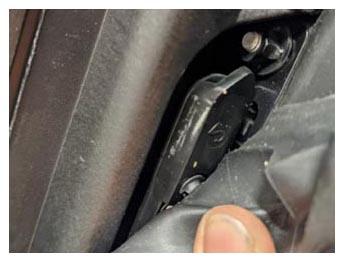

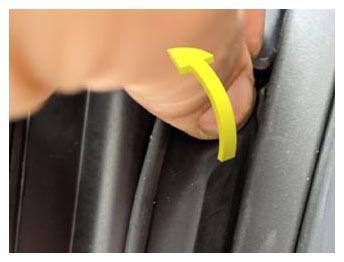

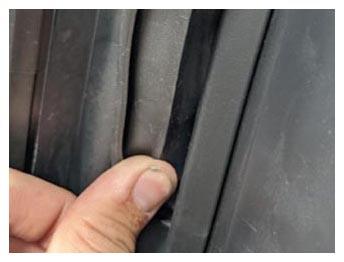

- Position the LH upper rear door front bumper into the vehicle, secure the lower tab, push in the lower clip, push in the upper clip, and then lift the top of the bumper over the upper tab. Use a trim tool to tuck the bumper into the upper falcon wing glass.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Close the LH falcon wing door.
