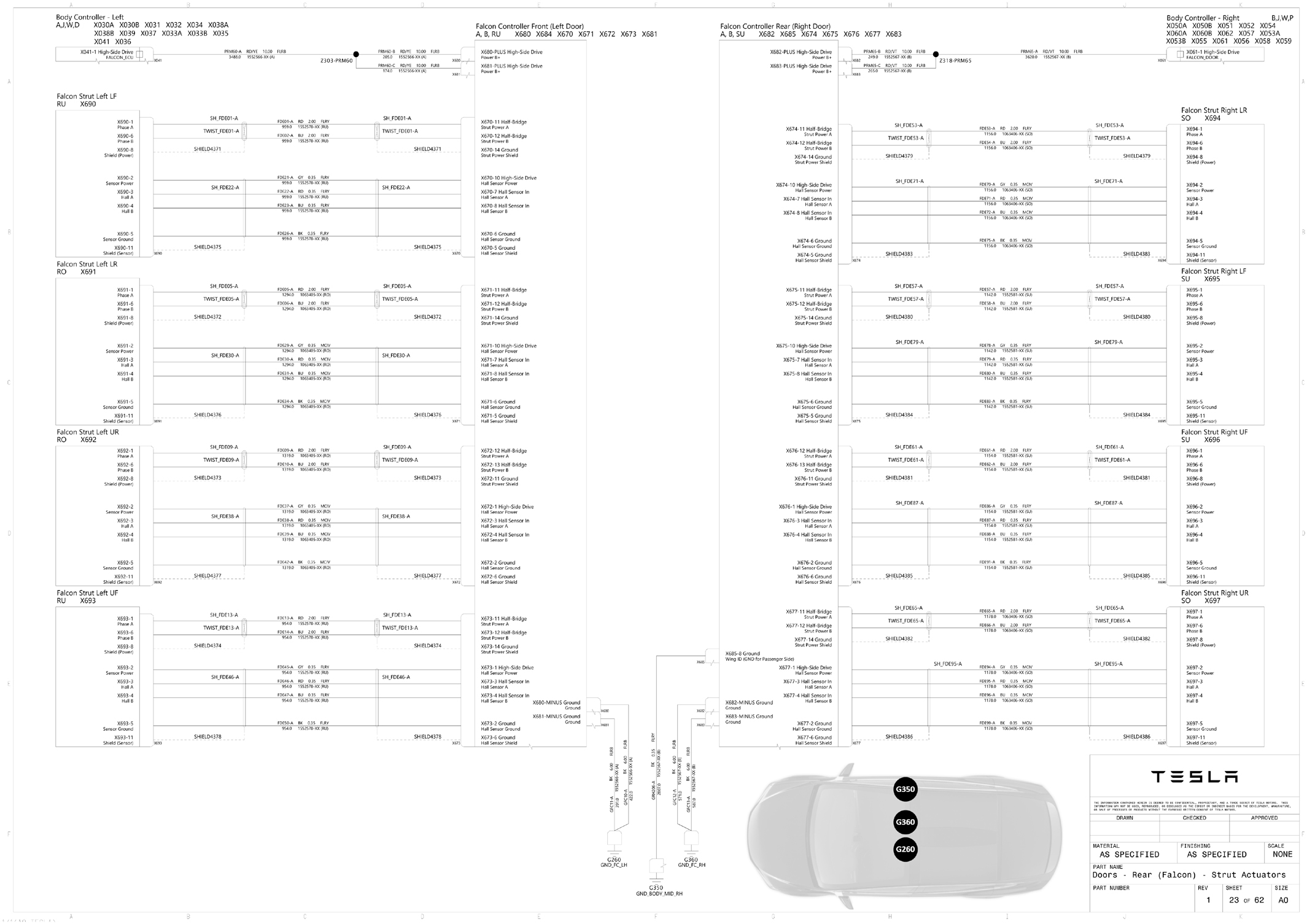

Doors - Rear (Falcon) - Strut Actuators - Wiring Diagram [2021 -]

G15424658

Courtesy of TESLA, INC.
