Underhood Apron - Rear - Remove And Replace: Install

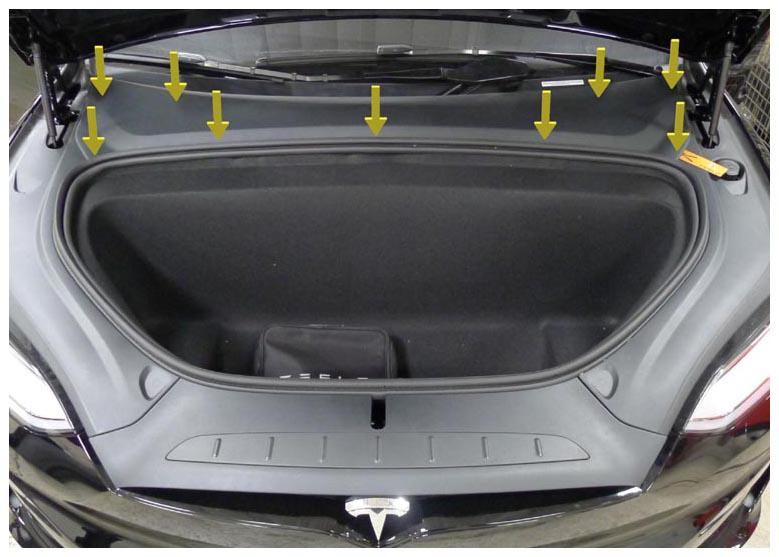

  1. Install the rear underhood apron into the vehicle, and then fasten the clips (x11) that attach the apron to the vehicle.
    G15394219Courtesy of TESLA, INC.
  2. Close the hood.
