Underhood Apron - LH - Remove And Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .

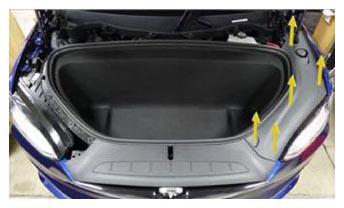

  2. Work from the hood hinge forward to release the clips (x11) that attach the LH underhood apron to the body, and then remove the apron from the vehicle.

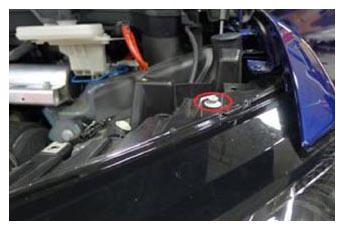

    NOTE: Remove the clip at the headlamp, if retained there, and then install onto the LH underhood apron.
    G15394213Courtesy of TESLA, INC.
    G15394214Courtesy of TESLA, INC.
