Underhood Apron - Front - Remove And Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Remove the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .

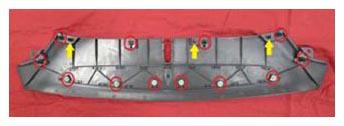

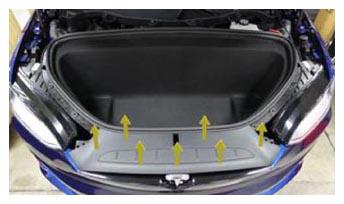

  3. Release the clips (x12) that attach the front underhood apron to the body, and then remove the apron from the vehicle.
    G15394209Courtesy of TESLA, INC.
    G15394210Courtesy of TESLA, INC.
