Underhood Apron - Front - Remove And Replace: Install

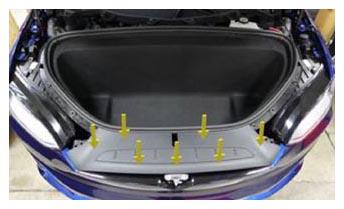

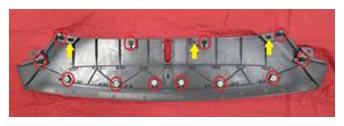

  1. Install the front underhood apron to the body, and then fasten the clips (x12) that attach the apron to the body.
    G15394211Courtesy of TESLA, INC.
    G15394212Courtesy of TESLA, INC.
  2. Install the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
  3. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
