Hose - Drain - Cowl Screen - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
  4. Remove the front underhood apron. See UNDERHOOD APRON - FRONT (REMOVE AND REPLACE) .
  5. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install) .

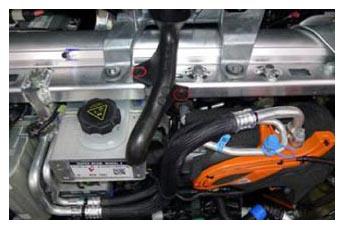

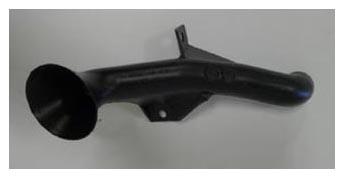

  6. Remove the clips (x2) that attach the cowl screen drain hose to the vehicle, and then remove the drain hose from the vehicle.
    G15394185Courtesy of TESLA, INC.
    G15394186Courtesy of TESLA, INC.
